BNP Blast Cabinets
Flexible and modularly configurable with a separate cyclone and filter unit.
Products

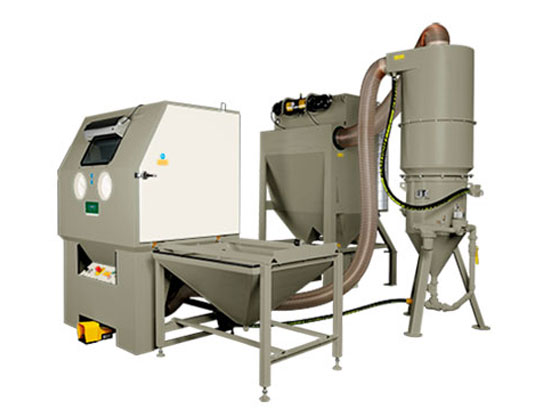

BNP 65 Blast Cabinet
A highly flexible system designed to meet your specific requirements. With its customizable configuration options and a clear separation between the blast cabinet and accessories, this system offers unparalleled flexibility. Whether you need it for delicate or heavy-duty blasting processes, the BNP 65 ensures a tailored solution for every application.

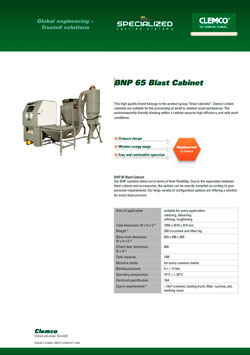

For more information, please download the technical datasheet.
BNP 220 Blast Cabinet
The BNP 220 Blast Cabinet offers unparalleled flexibility with customizable options for blasting processes. Available as pressure or suction system, it handles cleaning, deburring, refining, and roughening tasks. Dimensions: 1420-2600 x 2100 x 1025 mm, Weight: 280 kg, Tank capacity: 100L, Blasting pressure: 0-12 bar, Operating temperature: 15°C-30°C, Electrical specification: 16A, Space requirements: 16.2m². Optional attachments available.

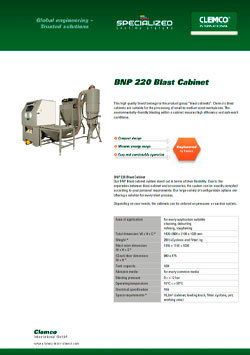

For more information, please download the technical datasheet.

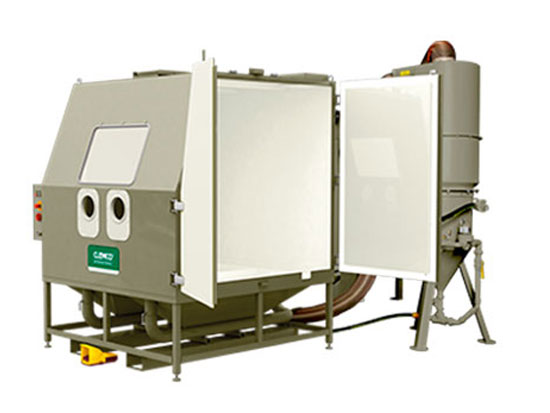

BNP 601 Blast Cabinet
The BNP 601 Blast Cabinet offers exceptional flexibility with customizable options to suit specific blast processes. Available as pressure or suction system, it handles cleaning, deburring, refining, and roughening tasks. Dimensions: 1505 x 2310 x 1505 mm, Weight: 795 kg (excluding cyclone and filter). Blast room dimension: 1490 x 1530 x 1500, Clear door dimension: 1400 x 1380. Tank capacity: 100L, Blasting pressure: 0-12 bar, Operating temperature: 15°C-30°C, Electrical specification: 16A. Space requirements: 27m² (cabinet, loading truck, filter, cyclone, pot, working area). Features individual configuration for blast cabinet, blast machine, abrasive media recovery system (cyclone), and cartridge filter (dust filter).

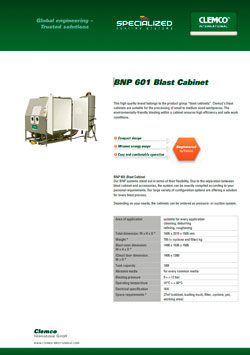

For more information, please download the technical datasheet.
BNP 721 Blast Cabinet
The BNP 721 Blast Cabinet excels in flexibility, allowing tailored compilation for individual requirements. Available as pressure or suction system, it handles cleaning, deburring, refining, and roughening tasks. Dimensions: 1845 x 2520 x 1835 mm, Weight: 1080 kg (excluding cyclone and filter). Blast room dimension: 1820 x 1750 x 1830, Clear door dimension: 1730 x 1590. Tank capacity: 100L, Blasting pressure: 0-12 bar, Operating temperature: 15°C-30°C, Electrical specification: 16A. Space requirements: 29m² (cabinet, loading truck, filter, cyclone, pot, working area). Features individual configuration for blast cabinet, blast machine, abrasive media recovery system (cyclone), cartridge filter (dust filter), and optional attachments

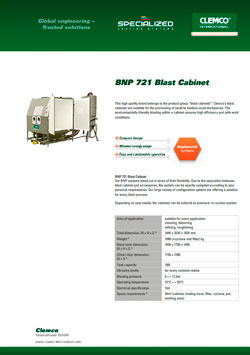

For more information, please download the technical datasheet.
