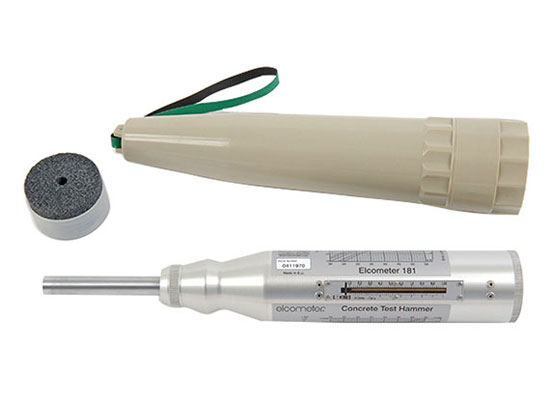

Elcometer 181 Mechanical Concrete Test Hammer
The Elcometer 181 Mechanical Concrete Test Hammer provides a quick, simple and inexpensive method for non-destructive evaluation of the compression strength of concrete and other masonry materials. These are the most common and widely used non-destructive testing instruments for concrete compression strength evaluation and Elcometer offers both mechanical & digital models. This gauge consists of a spring-loaded plunger which when released strikes the surface with fixed and constant impact energy. During the rebound stroke, the mass moves a pointer that indicates the maximum point of return and at the same time indicates a reference value called Rebound Number. This number, converted by correlations available on the hammer, gives the compression resistance value in respect of the impact angle.

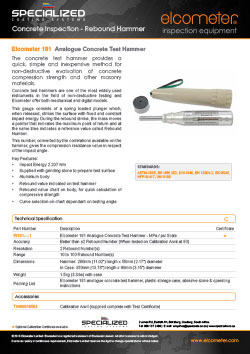

For more information and to see the full range, please download the brochure.
