Elcometer 456 Coating Thickness Gauge img

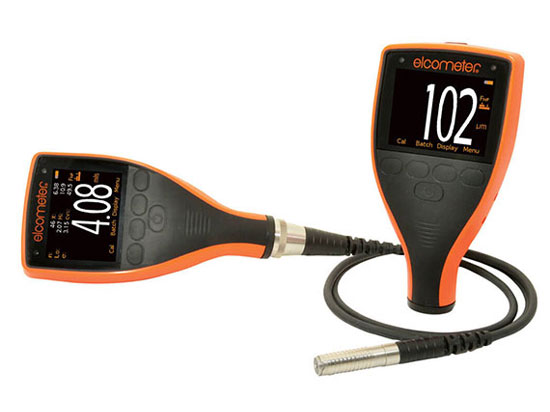

Elcometer 456 Coating Thickness Gauge

The Elcometer 456 Coating Thickness Gauge sets new standards; providing reliable and accurate coating thickness measurements; helping you to become more efficient. The Elcometer 456 dry film thickness gauge is available in three different models. Each coating thickness gauge provides the user with increasing functionality - from the entry level Elcometer 456 Model Basic to the top of the range Elcometer 456 Model Top. Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot™ internal probe provides greater stability during coating thickness measurement - allowing for consistent, repeatable and accurate dry film thickness results. Separate coating thickness gauge models, with their wide range of probes, provide even greater dry film thickness measurement flexibility.

For more information and to see the full range, please download the brochure.

Industrial Paint and Powder Thickness Gauge img

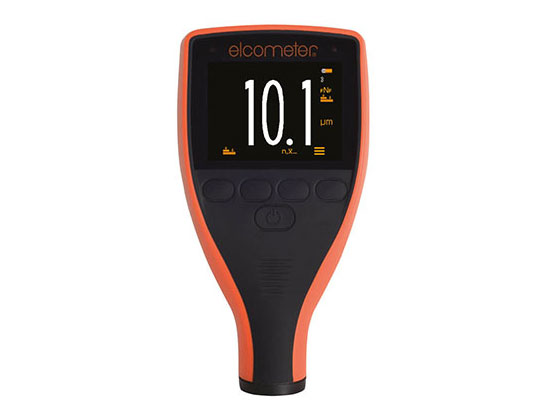

Elcometer 415 Industrial Paint & Powder Thickness Gauge

The Elcometer 415 Industrial Paint & Powder Thickness Gauge provides simple, fast & accurate coating thickness measurements on smooth and thin industrial paint & powder coatings. The Elcometer 415 automatically switches between ferrous & non-ferrous metals and is designed to measure cured paint and powder coatings up to 1000µm. With a reading rate of 60+ readings per minute, the Elcometer 415 allows you to inspect more industrial materials in less time.

For more information and to see the full range, please download the brochure.

Elcometer 355 Coating Thickness Gauge img

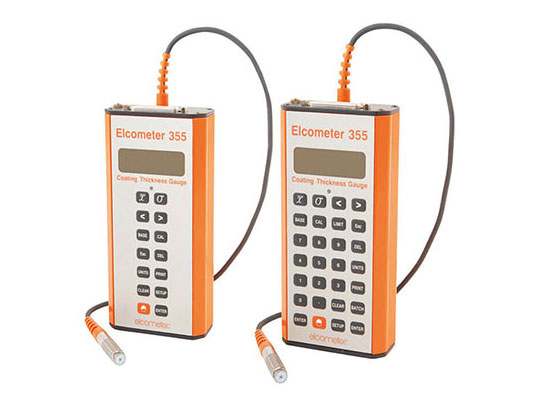

Elcometer 355 Coating Thickness Gauge

The Elcometer 355 Coating Thickness Gauge’s watchwords are accuracy, simplicity, versatility and durability making this a true state of the art hand-held measuring system packed with time-saving and cost-cutting features. Available as a standard and top model, the unit’s large memory stores up to 10,000 readings in batches, and data can be output to PC, data-logger or printer as required. With a comprehensive range of Probe Modules available, simply select the most appropriate for the application. All modules are supplied with calibration foils.

For more information and to see the full range, please download the brochure.

Elcometer 500 Coating Thickness Gauge img

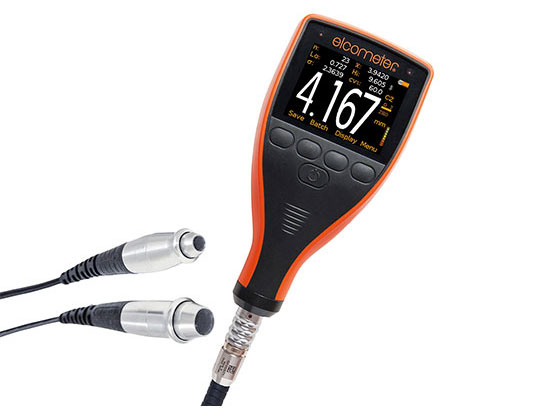

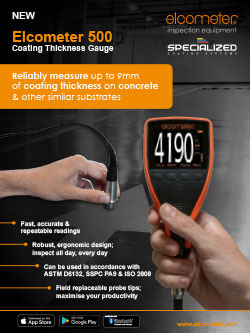

Elcometer 500 Coating Thickness Gauge

The Elcometer 500 Coating Thickness Gauge accurately measures the thickness of coatings on concrete and other similar substrates non-destructively. It is fast, accurate and takes repeatable and reproducible dry film thickness measurements of coatings on concrete up to 10mm thick. Robust, ergonomic, and sealed against dirt and water, equivalent to a rating of IP54, the Elcometer 500 Concrete Coating Thickness Gauge has been designed to work in harsh environments.

For more information and to see the full range, please download the brochure.

Elcometer 211 Mechanical Coating Thickness Gauge img

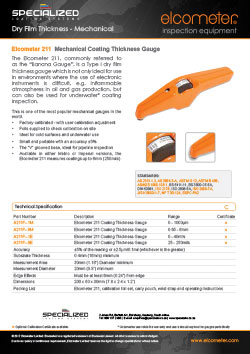

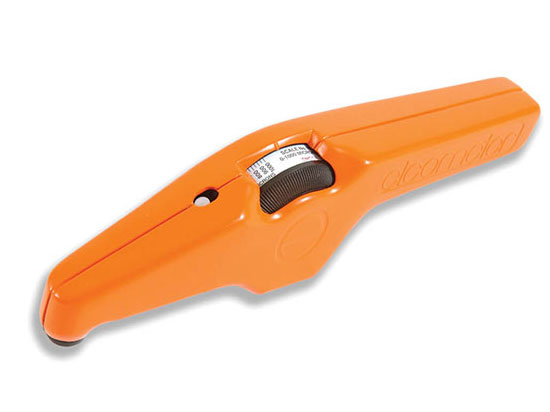

Elcometer 211 Mechanical Coating Thickness Gauge

The Elcometer 211 Mechanical Coating Thickness Gauge also known as the “Banana Gauge” has proven to be successful for use in environments where the use of electronic instruments is difficult eg flammable atmospheres in oil and gas production, and for underwater dry film coating thickness inspection. The Elcometer 211 Mechanical Coating Thickness Gauge is small, portable with an accuracy of +/- 5%.

For more information and to see the full range, please download the brochure.

Elcometer 101 Coating Thickness Gauge img

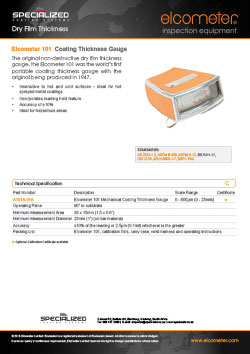

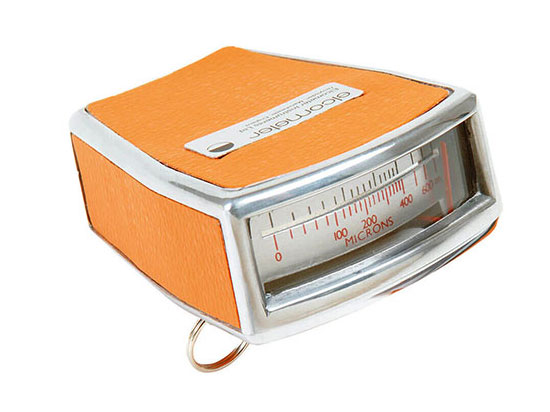

Elcometer 101 Coating Thickness Gauge

The Elcometer 101 Coating Thickness Gauge was the worlds first portable coating thickness gauge, first produced in 1947 and still has some advantages over other gauges such as insensitivity to hot or cold surfaces, incorporates reading hold feature, accuracy of better than 10% and is ideal for hazardous areas.

For more information and to see the full range, please download the brochure.

Elcometer 990 Calibration Foils img

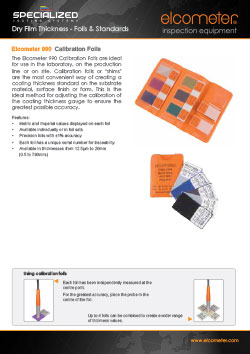

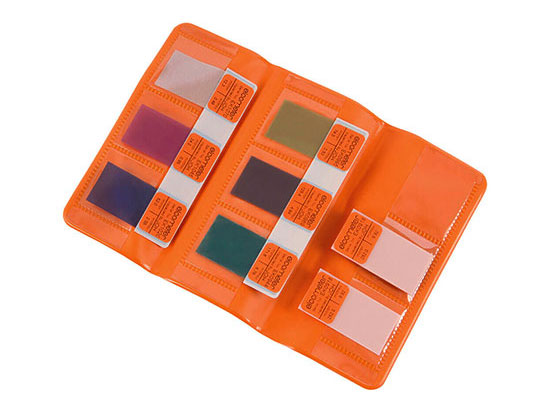

Elcometer 990 Calibration Foils or “Shims”

The Elcometer 990 Coating Thickness Gauge Calibration Foils or “Shims” are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy. Elcometer 990 Coating Thickness Gauge Calibration Foils are ideal for use in laboratories, production lines or for site use.

For more information and to see the full range, please download the brochure.

Hexagonal Wet Film Combs img

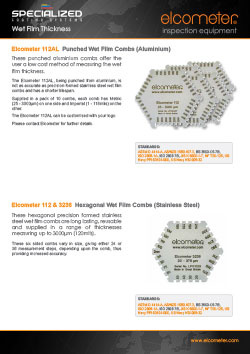

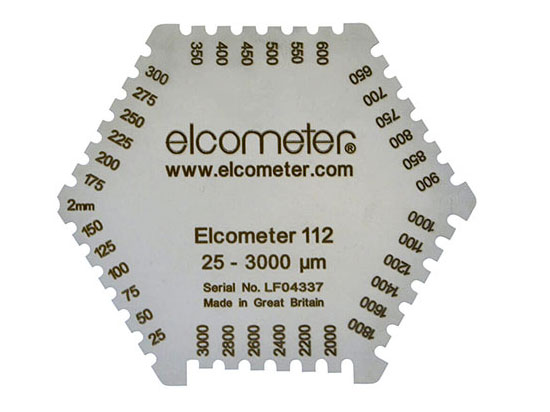

Elcometer 112AL, 112 & 3236 Hexagonal Wet Film Combs

Elcometer 112AL, 112 & 3236 Hexagonal Wet Film Combs are designed for wet film thickness measurements and come in a range of thickness scales. They are precision formed wet film combs that are long lasting, reusable and supplied in a range of thicknesses measuring up to 3000µm. These six-sided combs vary in size, giving either 24 or 36 measurement steps, depending upon the comb, thus providing increased accuracy.

For more information and to see the full range, please download the brochure.

Elcometer 115 Stainless Steel Wet Film Combs img

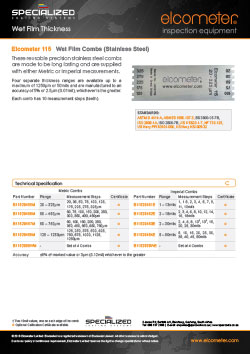

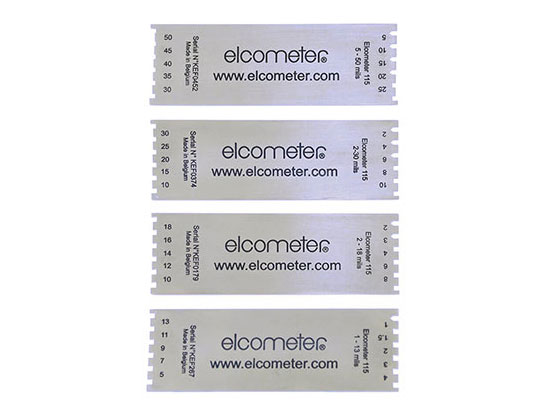

Elcometer 115 Stainless Steel Wet Film Combs

The Elcometer 115 Stainless Steel Wet Film Combs are reusable precision wet film combs and are designed to be long lasting. Supplied with either metric or imperial film thickness measurements, they have 4 separate wet film thickness ranges available up to a maximum of 1250µm and are manufactured to an accuracy of 5% or 2.5µm, whichever is greater. Each Elcometer 115 Stainless Steel Wet Film comb has 10 measurement steps (teeth).

For more information and to see the full range, please download the brochure.

Long Edge Wet Film Combs img

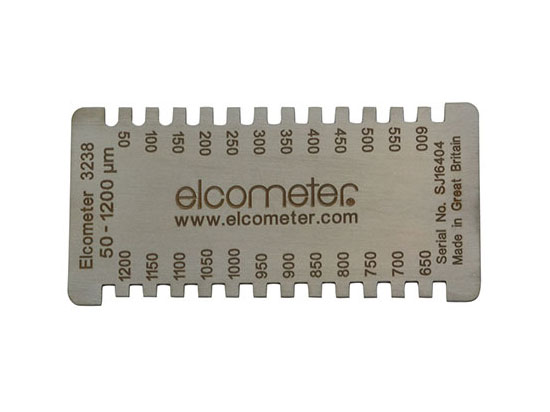

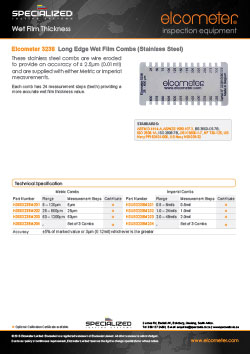

Elcometer 3238 Long Edge Wet Film Combs

The Elcometer 3238 Long Edge Wet Film Combs are stainless steel combs and are wire eroded to provide an accuracy +/- 5% of marked value or +/- 3µm, whichever is greater, and are supplied with either metric or imperial measurements. Each wet film comb has 24 measurement stages (teeth) providing a more accurate wet film thickness value.

For more information and to see the full range, please download the brochure.

Elcometer 154 Wet Film Comb img

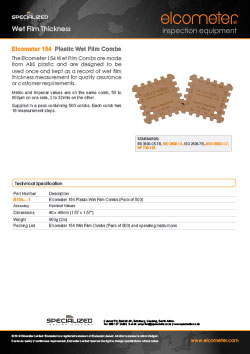

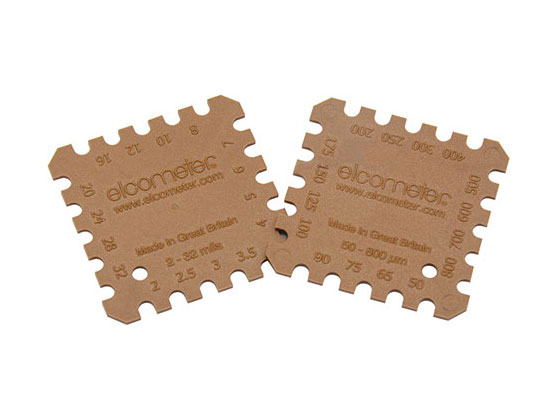

Elcometer 154 Wet Film Comb

The Elcometer 154 Wet Film Combs are made from ABS plastic and are designed to be used once and kept as a record of wet film thickness measurement for quality assurance or customer requirements. The metric values on the comb range from 50 – 800µma and are supplied in a batch containing 25 wet film combs, each comb has 16 measurement steps (teeth).

For more information and to see the full range, please download the brochure.

Elcometer 3230 Wet Film Wheel img

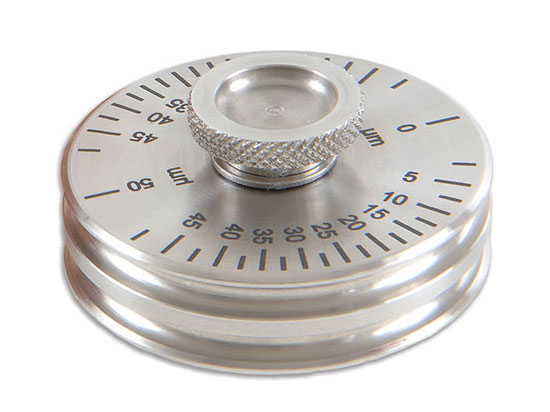

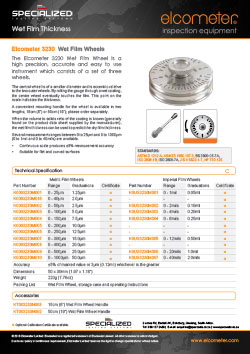

Elcometer 3230 Wet Film Wheel

The Elcometer 3230 Wet Film Wheel is a high precision, accurate and easy to use instrument which consists of a set of three wheels. The central wheel is of a smaller diameter and is eccentric relative to the two outer wheels. By rolling the gauge through a wet coating, the centre wheel eventually touches the film, this point on the scale indicates the thickness. A convenient mounting handle for the wheel is available in two lengths – 15cm & 50cm which will need to be ordered separately. Several measurement ranges between 0 – 25µm and 0 – 1000µm are available. Continuous scale produces +/- 5% measurement accuracy. The Elcometer 3230 Wet Film Wheel is suitable for flat or curved surfaces.

For more information and to see the full range, please download the brochure.

Coil Coating Wet Film Wheels img

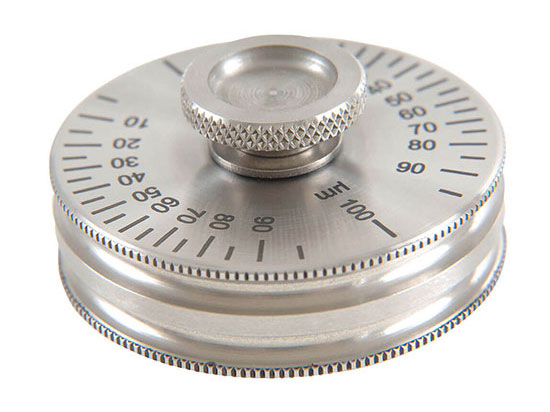

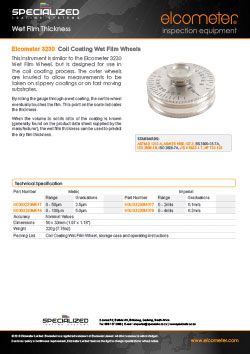

Elcometer 3230-1 Coil Coating Wet Film Wheels

The Elcometer 3230-1 Coil Coating Wet Film Wheel is similar to the Elcometer 3230 Wet Film Wheel except its designed for use in the coil coating process. The outer wheels are knurled to allow measurements to be taken on slippery coatings or on fast moving substrates. By rolling the gauge through the wet coating, the centre wheel eventually touches the film, this point on the scale indicates the thickness.

For more information and to see the full range, please download the brochure.

Elcometer 3233 Pfund Thickness Gauge img

Elcometer 3233 Pfund Thickness Gauge

The Elcometer 3233 Pfund Thickness Gauge is used to measure the film thickness of wet translucent products such as varnishes, paints and oils. Available in aluminium or stainless steel this instrument consists of two concentric cylinders, one sliding inside the other. A spherical glass lens is fitted to the end of the central cylinder and when pressed into the wet film, leaves a circular trace. The diameter of the mark on the lens is measured and, using the supplied conversion table, the thickness of the coating can be easily assessed. The Elcometer 3233 Pfund Thickness Gauge has a measurement range of 2.25 – 360µm.

For more information and to see the full range, please download the brochure.
