Dust Extractors
Dust extraction solutions that can be used with small to mid-size scarifiers, grinders, shot blasters & handheld power tools.
- Husqvarna S 36
- Festool CTM 36 E AC-PLANEX
- Festool CTM 36 E AC
- Festool CTL 36 E AC-PLANEX
- Festool CTL 36 E AC

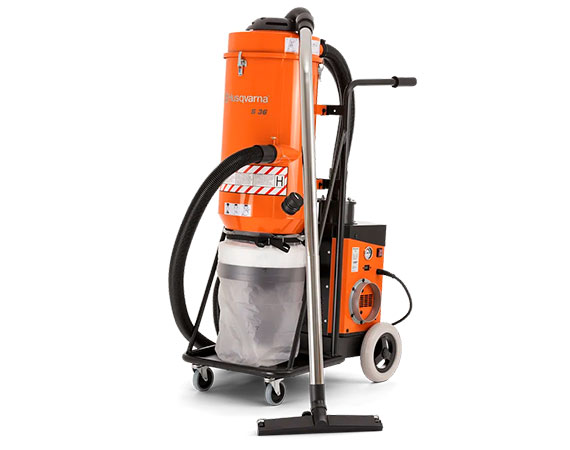

Husqvarna S 36
The Husqvarna S 36 comes with a highly powerful single phase HEPA dust extractor that matches the Husqvarna grinding machines PG 530, PG 450, PG 400 and PG 280 as well as small to mid size scarifiers, grinders, shot blasters and handheld power tools.
Three large, commercial-grade vacuum motors provide plenty of power designed to meet strict demands. Equipped with three independently tested and certified HEPA H13 filters and a massive cone-shaped pre-filter with over 4.5 m² of media. The result is excellent dust collection of even fine sanding and gypsum dust.
| ENGINE | |
| Power Source | Corded |
| MOTOR | |
| Rated input power | 3.6 kW |
| Phases | 1 ph |
| Voltage | 230 V |
| Rated current | 15.7 A |
| Max. vacuum | 220 mbar |
| SPECIFICATIONS | |
| Air requirement | 230 V |
| HEPA filters 99.99% at 0.3 microns | 3 |
| DIMENSIONS | |
| Product size length | 830 mm |
| Product size width | 620 mm |
| Product size height | 1,500 mm |
| Weight | 63 kg |
Features

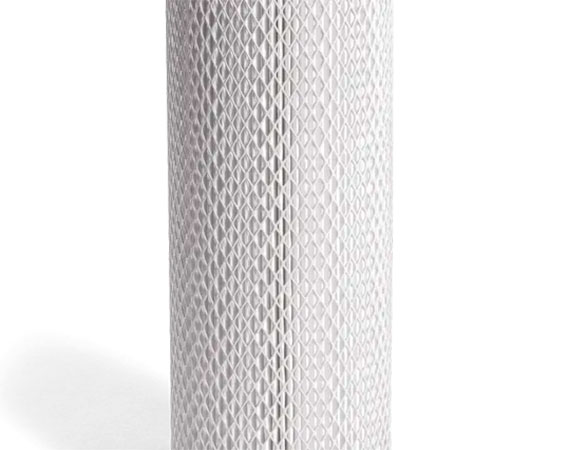

Efficient Filtration System
Three separate filtering stages increase the work time between filter cleaning. Dust is filtered through the cyclone chamber, separating the heaviest parts, up to 95% of the dust. The remaining HEPA micro filters are individualy tested and certified to capture 99.99% of the reaming silica dust (0.3µm).Easy and Efficient Filter Cleaning

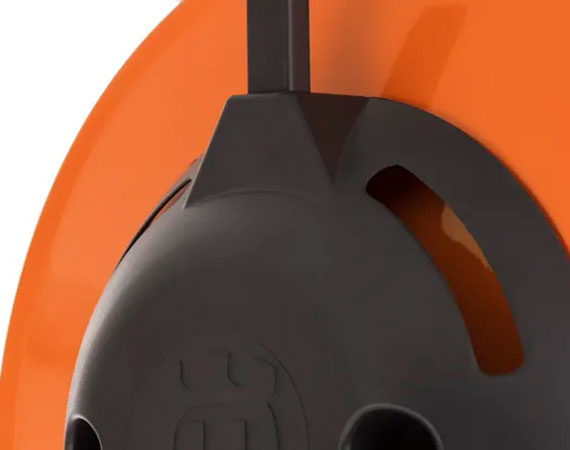

The Jet Pulse filter cleaning system ensures a continuous airflow due to the easy and efficient cleaning of the conical main filter without opening the machine.Durable Design

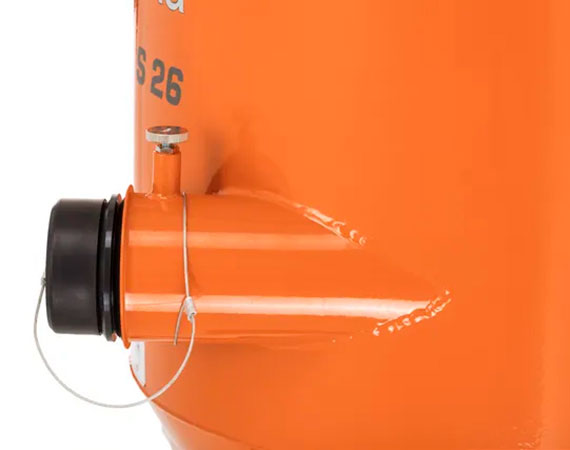

Highly durable design with corrosion resistant steel clamps, welded frame with a dust bag platform and durable steel handle make it endure many years of service.Easy to Transport

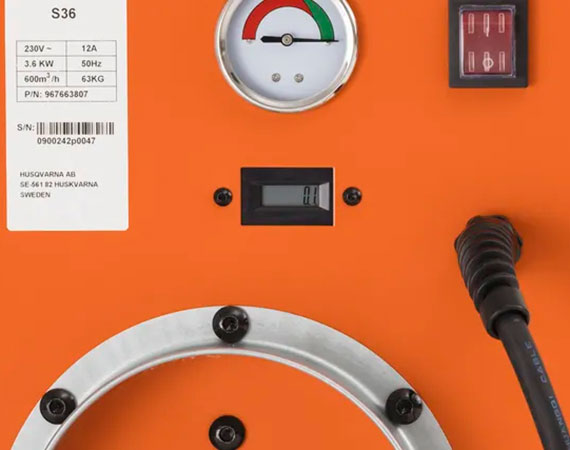

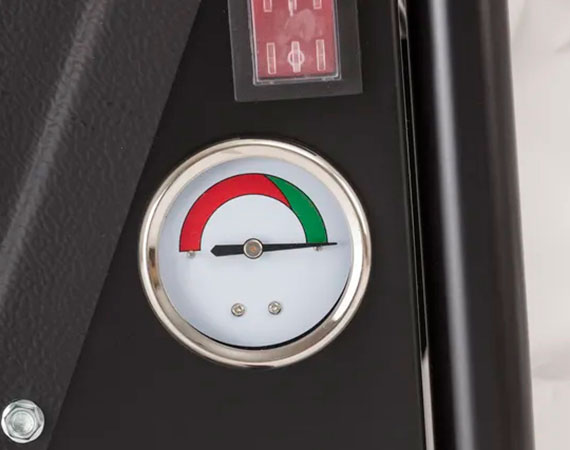

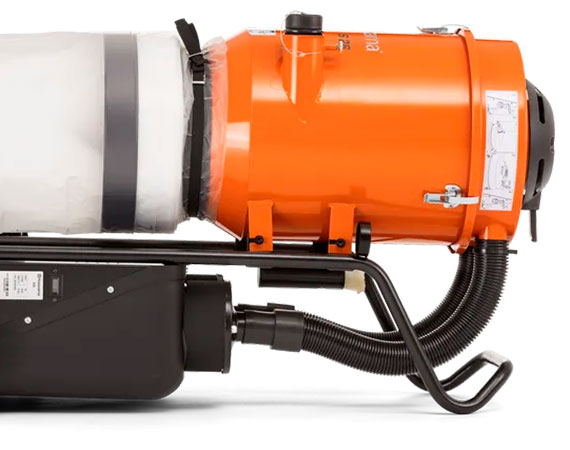

The machine can be rested on its frame which makes for easy transportation.Easy to Read Airflow Monitoring

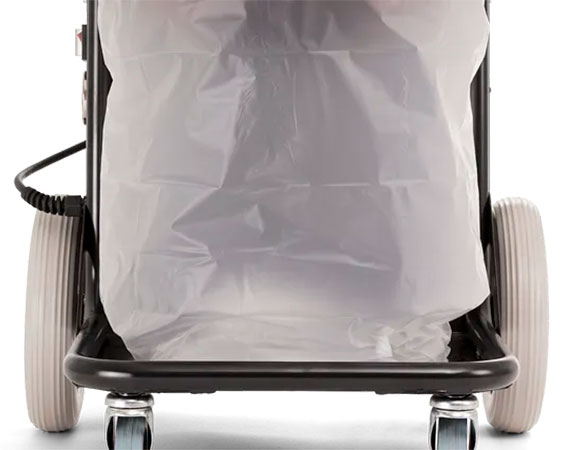

The S 36 alerts you when the filter needs to be clean or changed.Clean and Simple Bag Change

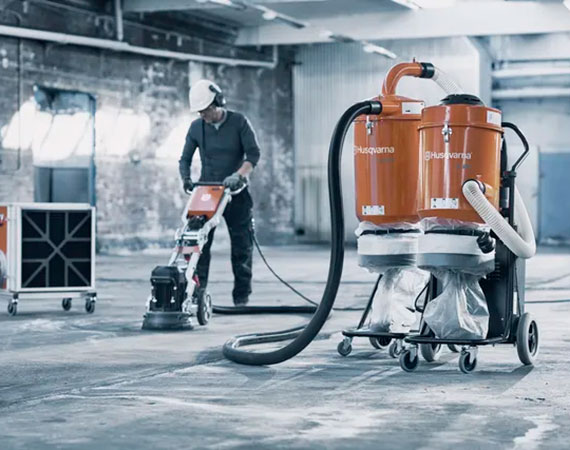

Easy cleaning with the Longopac® bag hose system without any dust spills.For Demanding Industrial Applications
For demanding industrial applications, where high suction and airflow are required to eliminate airborne dust.Control
The hour counter let you know when it is time for service and how many hours the machine has been used.
Festool Mobile Dust Extractor

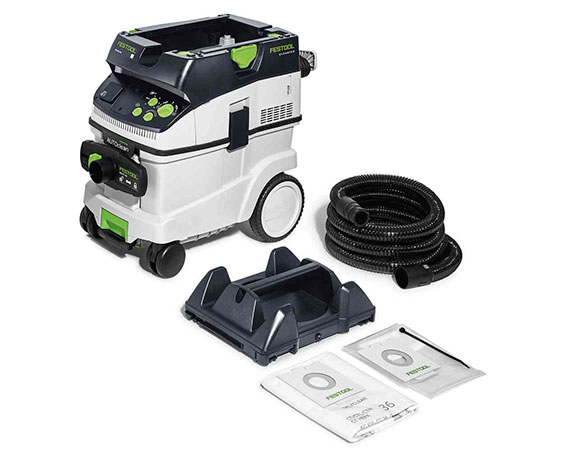

CLEANTEC CTM 36 E AC-PLANEX
Ideal for drywall construction. The powerful CLEANTEC CTM 36 AC PLANEX with a 36 l container volume is designed specifically for the extreme material removal capacity of the PLANEX long-reach sander.
With tool holder, non-buckling hose and standard ComfortClean sealing slide for even more efficient filter cleaning. With its large container geometry, the CTM 36 AC PLANEX provides maximum volume. At the same time it is extremely mobile, thanks to swivelling castor wheels and large rear wheels.
| Technical Data | |
| Power consumption | 350 - 1,200 W |
| Max. volume flow | 3,900 L/min. |
| Max. vacuum | 24,000 Pa |
| Filter surface area | 6,318 cm² |
| Rubber insulated mains cable | 7.5 m |
| Container/filter bag capacity | 36/34 Lt |
| Dimensions (L x W x H) | 630 x 365 x 596 mm |
| Max. appliance socket connected load | 2,400 W |
| Dust class | M |
| Product weight without accessories | 16.30 Kg |
| Drive type | Mains |
Features

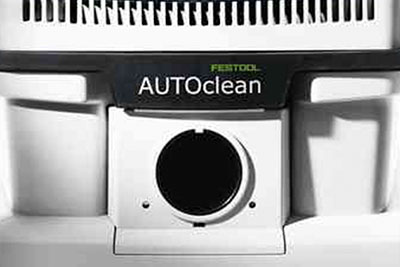

Automatic Filter Cleaning
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times.Easy and Efficient Filter Cleaning

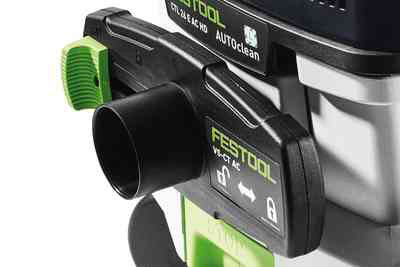

Heavily clogged filters can be cleaned by closing the inlet manually with the ComfortClean sealing slide.Effective Cleaning
The main filter is cleaned every 10 seconds to ensure reliably high suction power, even at a high dust removal rate.Practical Tool Tray

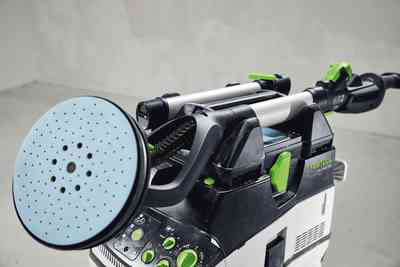

The long-reach sander is securely attached to the tool holder. This enables abrasives to be changed quickly and conveniently or the range of the PLANEX to be extended with just a few hand movements. With a practical carry handle.Rapid Cable Unwinding

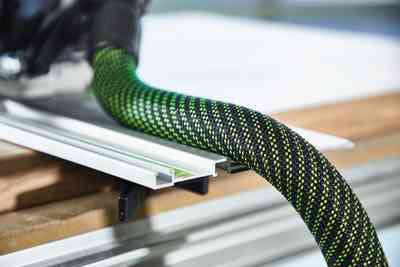

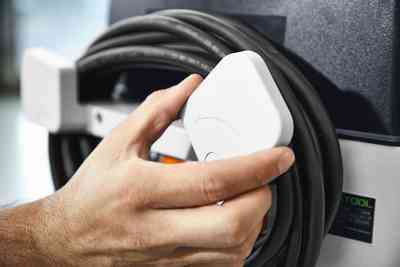

It's quick and easy to remove the cable thanks to a clever folding mechanism.Maximum Flexibility
Highly sensitive and non-buckling suction hose.Tear-resistant Fleece Filter Bag

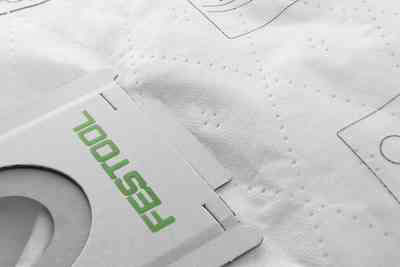

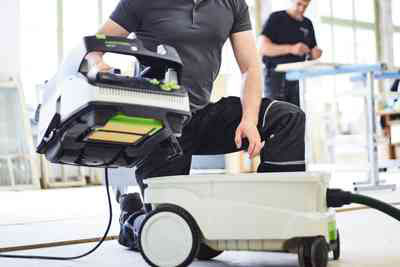

The fleece filter bags are self-cleaning because they collapse after the extractor is turned off.Disposable Bag

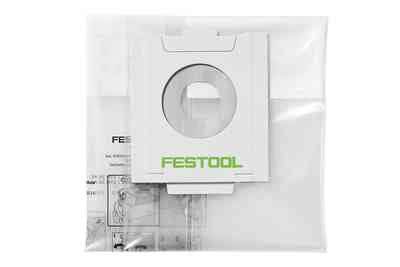

Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.Transport Safe

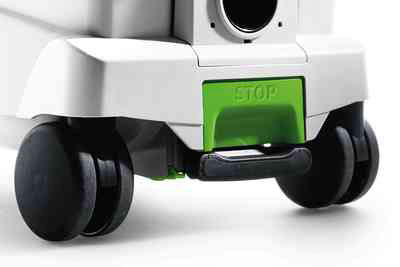

The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over.Large Capacity

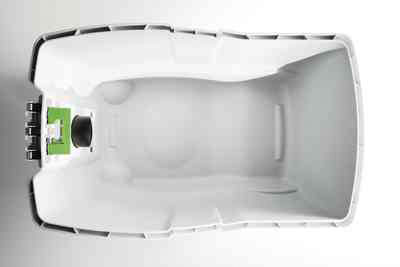

The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container.Optional Extension

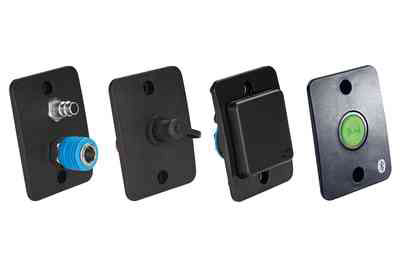

Depending on requirements, the extractor can be equipped with additional modules, such as a compressed air module, an electrical outlet module with continuous power or automatic electronic switch-on/shut-off switch, an energy box module or a Bluetooth® module.For Dusts in Class M
The extractor is approved for dust class M. It is suitable for extracting harmful dusts with limit values > 0.1 mg/m³. The extractor features a large red label that indicates the dust class.Extremely Versatile
For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements. Festool Mobile Dust Extractor
CLEANTEC CTM 36 E AC
No more clogged filters – the AUTOCLEAN (AC) automatic main filter cleaning keeps the filter clean and provides a continuously high suction power. With its huge container capacity of 36 L, the CLEANTEC CTM 36 AC provides maximum volume and a high degree of flexibility. Equipped with swivelling castor wheels and rear wheels for optimum mobility. It also has a locking brake that provides stability on any surface as well as during transport.
The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class M.
| Technical Data | |
| Power consumption | 350 - 1,200 W |
| Max. volume flow | 3,900 L/min. |
| Max. vacuum | 24,000 Pa |
| Filter surface area | 6,318 cm² |
| Rubber insulated mains cable | 7.5 m |
| Container/filter bag capacity | 36/34 Lt |
| Dimensions (L x W x H) | 630 x 365 x 596 mm |
| Max. appliance socket connected load | 2,400 W |
| Dust class | M |
| Product weight without accessories | 16.30 Kg |
| Product weight with accessories | 18.70 Kg |
| Drive type | Mains |
Features
Automatic Filter Cleaning
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times.Manual Cleaning
Heavily clogged filters can be cleaned by closing the inlet manually with the ComfortClean sealing slide.Adjustable according to Requirements

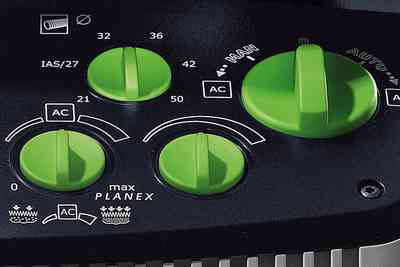

The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately.Easy Connections
Accessories and tools in the Systainer, SORTAINER and SYS tool box can be quickly and easily connected to the extractor via the SYS dock thanks to the T-LOC system.Everything in Place

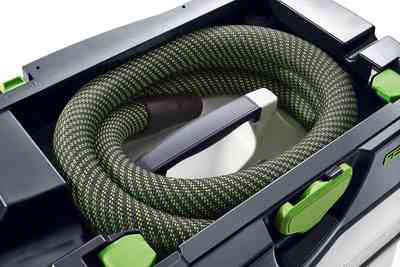

The power cable and suction hose are stored tidily and optimally protected in the permanently integrated hose holder, allowing for ease of transportation.Simply Flexible
Smooth, elastic and extremely robust. The smooth suction hose will win you over thanks to its improved handling and longer service life. It glides over every edge and possesses conical geometry for increased suction capacity.Rapid Cable Unwinding
It's quick and easy to remove the cable thanks to a clever folding mechanism.High Suction Power
Extremely powerful, compact and light: The high-performance turbine provides considerably higher suction power and requires very little space.Tear-resistant Fleece Filter Bag
The fleece filter bags are self-cleaning because they collapse after the extractor is turned off.Disposable Bag
Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.Transport Safe
The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over.Large Capacity
The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container.Optional Extension
Depending on requirements, the extractor can be equipped with additional modules, such as a compressed air module, an electrical outlet module with continuous power or automatic electronic switch-on/shut-off switch, an energy box module or a Bluetooth® module.For Dusts in Class M
The extractor is approved for dust class M. It is suitable for extracting harmful dusts with limit values > 0.1 mg/m³. The extractor features a large red label that indicates the dust class.Extremely Versatile
For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements.
Festool Mobile Dust Extractor

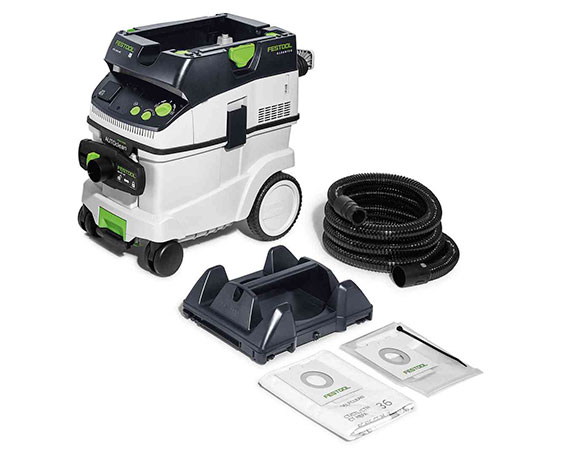

CLEANTEC CTL 36 E AC-PLANEX
The higher the material removal capacity of a sander, the more powerful the corresponding mobile dust extractor needs to be. The powerful CLEANTEC CTL 36 AC PLANEX with a 36 l container volume is designed specifically for the extreme material removal capacity of the PLANEX long-reach sander. With tool holder, non-buckling hose and standard ComfortClean sealing slide for even more efficient filter cleaning. With its large container geometry, the CTL 36 AC PLANEX provides maximum volume. At the same time, it is extremely mobile, thanks to swivelling castor wheels and large rear wheels.
The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class L.
| Technical Data | |
| Power consumption | 350 - 1,200 W |
| Max. volume flow | 3,900 L/min. |
| Max. vacuum | 24,000 Pa |
| Filter surface area | 6,318 cm² |
| Rubber insulated mains cable | 7.5 m |
| Container/filter bag capacity | 36/34 Lt |
| Dimensions (L x W x H) | 630 x 365 x 596 mm |
| Max. appliance socket connected load | 2,400 W |
| Dust class | L |
| Product weight without accessories | 14.80 Kg |
| Drive type | Mains |
Features
Automatic Filter Cleaning
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times.Manual Cleaning
Heavily clogged filters can be cleaned by closing the inlet manually with the ComfortClean sealing slide.Adjustable according to Requirements

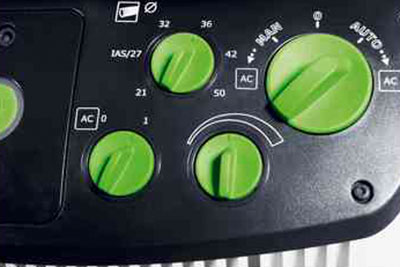

The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately.Practical Tool Tray
The long-reach sander is securely attached to the tool holder. This enables abrasives to be changed quickly and conveniently or the range of the PLANEX to be extended with just a few hand movements. With a practical carry handle.Maximum Flexibility
Highly sensitive and non-buckling suction hose.Rapid Cable Unwinding
It's quick and easy to remove the cable thanks to a clever folding mechanism.High Suction Power
Extremely powerful, compact and light: The high-performance turbine provides considerably higher suction power and requires very little space.Tear-resistant Fleece Filter Bag
The fleece filter bags are self-cleaning because they collapse after the extractor is turned off.Disposable Bag
Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.Transport Safe
The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over.Large Capacity
The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container.Optional Extension
Depending on requirements, the extractor can be equipped with additional modules, such as a compressed air module, an electrical outlet module with continuous power or automatic electronic switch-on/shut-off switch, an energy box module or a Bluetooth® module.For Dusts in Class L
The extractor is approved for dust class L. It is suitable for extracting harmful dusts with limit values > 1 mg/m³. The extractor features a large red label that indicates the dust class.Extremely Versatile
For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements.
Festool Mobile Dust Extractor

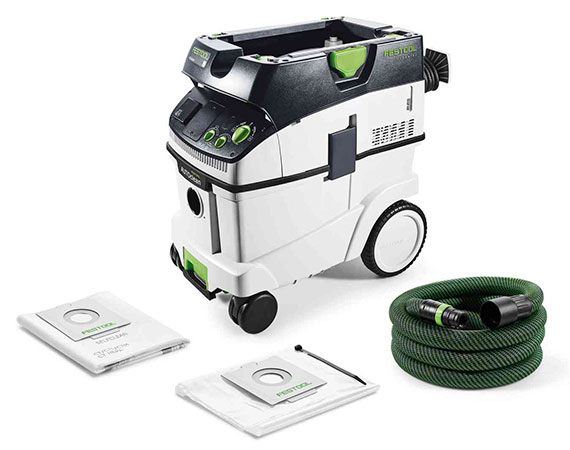

CLEANTEC CTL 36 E AC
No more clogged filters – the AUTOCLEAN (AC) automatic main filter cleaning keeps the filter clean and provides a continuously high suction power. With its huge container capacity of 36 l, the CLEANTEC CTL 36 AC provides maximum volume and a high degree of flexibility. Equipped with swivelling castor wheels and rear wheels for optimum mobility. It also has a locking brake that provides stability on any surface as well as during transport.
The flat filter fully integrated in the suction head ensures the full volume is utilised: This means that the gross and net container volumes are virtually identical. The extremely compact high-performance turbine provides the right suction power. A 3900 l/min volume flow means that nothing remains except clean air. Approved for dusts in dust class L.
| Technical Data | |
| Power consumption | 350 - 1,200 W |
| Max. volume flow | 3,900 L/min. |
| Max. vacuum | 24,000 Pa |
| Filter surface area | 6,318 cm² |
| Rubber insulated mains cable | 7.5 m |
| Container/filter bag capacity | 36/34 Lt |
| Dimensions (L x W x H) | 630 x 365 x 596 mm |
| Max. appliance socket connected load | 2,400 W |
| Dust class | L |
| Product weight without accessories | 14.80 Kg |
| Product weight with accessories | 18.50 Kg |
| Drive type | Mains |
Features
Automatic Filter Cleaning
AUTOCLEAN (AC) automatically cleans the main filter. The suction power therefore remains high at all times.Manual Cleaning
Heavily clogged filters can be cleaned by closing the inlet manually with the ComfortClean sealing slide.Adjustable according to Requirements

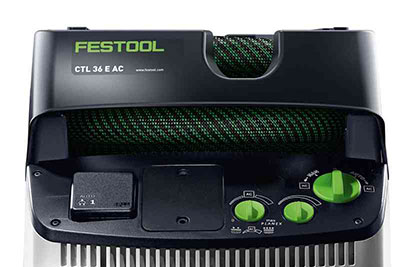

The cleaning intervals are set infinitely using the rotary switch: 0 = Cleaning off, 2 min., 1 min., 30 sec. and 15 sec. The shorter the intervals, the more intensive the cleaning. In the "AUTO" setting, the filter is automatically subjected to a final cleaning process once the machine is shut down. In the "AC" setting, the cleaning process is activated immediately.Everything in its place
The power cable and suction hose are stored tidily and optimally protected in the permanently integrated hose holder, allowing for ease of transportation.Highly Flexible
Smooth, elastic and extremely robust. The smooth suction hose will win you over thanks to its improved handling and longer service life. It glides over every edge and possesses conical geometry for increased suction capacity.Rapid Cable Unwinding
It's quick and easy to remove the cable thanks to a clever folding mechanism.High Suction Power
Extremely powerful, compact and light: The high-performance turbine provides considerably higher suction power and requires very little space.Tear-resistant Fleece Filter Bag
The fleece filter bags are self-cleaning because they collapse after the extractor is turned off.Disposable Bag
Perfect for dust extractors with AUTOCLEAN, e.g. for extracting coarse dirt and chips. Dust-free disposal via a lock on the disposable bag.Transport Safe
The locking brake ensures that the extractor will remain in place. The large wheels prevent the extractor from tipping over.Large Capacity
The filter bag is free to unfold because of the flat filter and the smooth inner contours of the container.Optional Extension
Depending on requirements, the extractor can be equipped with additional modules, such as a compressed air module, an electrical outlet module with continuous power or automatic electronic switch-on/shut-off switch, an energy box module or a Bluetooth® module.For Dusts in Class L
The extractor is approved for dust class L. It is suitable for extracting harmful dusts with limit values > 1 mg/m³. The extractor features a large red label that indicates the dust class.Extremely Versatile

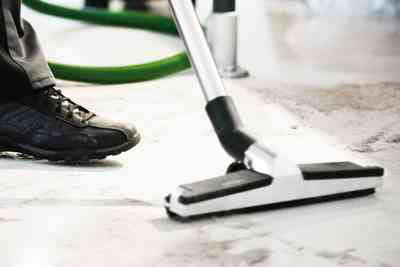

For dust, dirt and water. When absorbing water, the LevelStop shuts down the drive in good time and the motor remains protected. The wet filter can be set in place with just a few hand movements.
