Epoxy
Phenolic 175 Glass Flake
Epoxy Phenolic 175 Glass Flake is a premium solvent-free epoxy phenolic novolac lining reinforced with glass flake technology for extreme chemical and abrasion resistance. The highly cross-linked novolac epoxy system provides outstanding protection against aggressive chemicals, mineral acids, solvents, hot water immersion, and erosive service conditions. Designed for steel and concrete substrates, the coating is ideal for chemical storage tanks, bunded areas, pipelines, process equipment, and containment structures exposed to severe industrial environments.

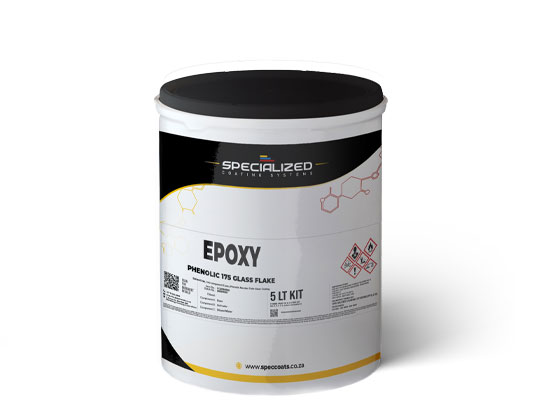

Supplied in 5L kit sizes and finished in Window Grey.
Features & Benefits
- Solvent-free epoxy phenolic novolac technology
- Glass flake reinforced barrier protection
- Exceptional chemical resistance
- High resistance to mineral acids and solvents
- Excellent abrasion resistance
- Outstanding mechanical durability
- Excellent erosion resistance in slurry environments
- Suitable for long-term chemical immersion service
- Excellent adhesion to correctly prepared steel and concrete
- High-build protective lining system
- Resistant to aggressive industrial chemicals
- Suitable for immersion and splash-zone environments
- Excellent resistance to hydrochloric acid exposure
- Suitable for sodium hydroxide and alkaline environments
- Resistant to de-ionized water immersion
- Excellent protection against chemical fumes and vapours
- High temperature water immersion resistance up to 120°C
- Dry temperature resistance up to 150°C
- 100% solids formulation
- Low permeability glass flake barrier technology
Intended Uses
Epoxy Phenolic 175 Glass Flake has been specifically developed for industrial environments where conventional epoxy coatings may not provide sufficient resistance to aggressive chemicals, hot process liquids, abrasion, or erosion. The advanced novolac epoxy chemistry combined with glass flake reinforcement creates an exceptionally dense and chemically resistant lining capable of protecting steel and concrete structures exposed to chemical immersion, acidic environments, aqueous slurries, and elevated temperatures. It is particularly suited to chemical processing facilities, mining operations, water treatment plants, and industrial containment systems requiring long-term asset protection.
Typical Applications:
- Chemical storage tanks
- Acid storage tanks
- Process vessels and reactors
- Concrete bund walls
- Secondary containment areas
- Chemical containment structures
- Internal pipe linings
- Culverts and channels
- Chemical processing equipment
- Mining slurry tanks
- Thickener tanks
- Effluent treatment facilities
- Chemical dosing areas
- Process plant floors
- Industrial walls exposed to chemicals
- Pump stations and valve chambers
- Wastewater treatment infrastructure
- Corrosion protection in aggressive chemical environments
- Equipment exposed to chemical splash and fumes
- Industrial immersion service applications
- High-temperature water immersion systems
- Abrasive slurry handling equipment
Technical Information:
- Product Type: Glass Flake Reinforced Epoxy Phenolic Novolac Lining
- Technology: Solvent-Free Epoxy Phenolic Novolac
- Colour: Window Grey
- Finish: Semi-Matt
- Volume Solids: 100%
- Mixing Ratio: 2:1 (Component A : Component B)
- Typical DFT: 350 Microns per Coat
- Typical WFT: 350 Microns per Coat
- Number of Coats: 2
- Total System DFT: 700 Microns
- Coverage Rate: 2.85m²/L per Coat
- Pot Life: 1 Hour at 25°C
- Induction Time: 5 Minutes
- Application Methods:
Brush
Roller
Airless Spray - Touch Dry: 6 Hours at 25°C
- Overcoating Time: 12 Hours at 25°C
- Full Cure: 7 Days at 25°C
- Dry Continuous Temperature Resistance: 150°C
- Water Immersion Resistance: Up to 120°C
- Pack Size: 5L Kit
- Shelf Life: 12 Months
Colours & Finishes
Window Grey
Please Note: Colour swatches and illustrations displayed are only to be used as a guide and can vary from the original.
