Dekotec Pipeline Shrink Sleeves
Pipeline Shrink Sleeves

Dekotec® Shrink Sleeves

Mastic & hotmelt shrink sleeves used for protecting weld seams, joints & repairing minor mechanical damage to coatings on pipe externals.

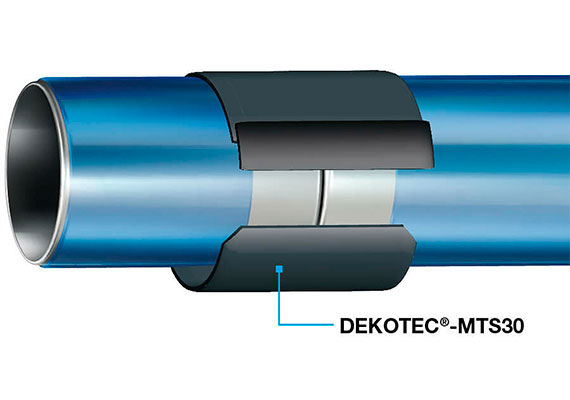

Heat Shrinkable Sleeve

DEKOTEC®-MTS30

DEKOTEC®- MTS30 presents a heat-shrinkable sleeve composed of an electron beam cross-linked polyethylene carrier film paired with mastic adhesive, designed for inhibiting corrosion on welded seams within steel pipes. It can be directly applied onto surfaces cleaned to ST2 standards as per ISO 8501-1, eliminating the necessity for sandblasting or primer application.

Product thickness: variable, on request

Design temperature from -35°C to +40°C

No primer

Complies with 14A-1 in accordance with ISO 21809-3

Stress class C30 in accordance with EN 12068, DIN 30672

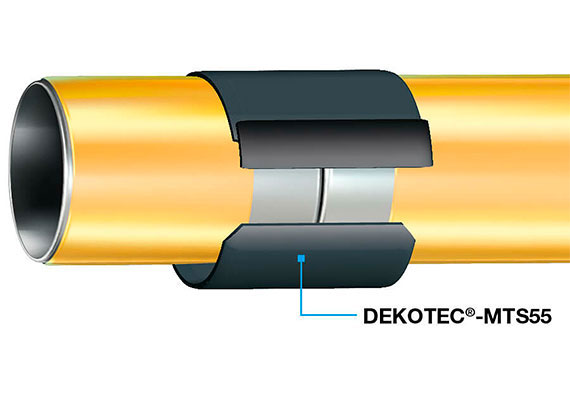

Dekotec MTS 55 diagram

DEKOTEC®-MTS55

DEKOTEC®-MTS55 is a heat-shrinkable sleeve consisting of an electron beam cross-linked polyethylene carrier film and a mastic adhesive for corrosion prevention on welding seams in steel pipes. DEKOTEC®-MTS55 is applied directly to ST2-cleaned surfaces in accordance with ISO 8501-1. Sandblasting is not required, and there is no need to apply a primer.

Product thickness: variable, on request

Design temperature from -35°C to +70°C

No primer

Complies with 14A-1 in accordance with ISO 21809-3

Stress class C50 in accordance with EN 12068, DIN 30672

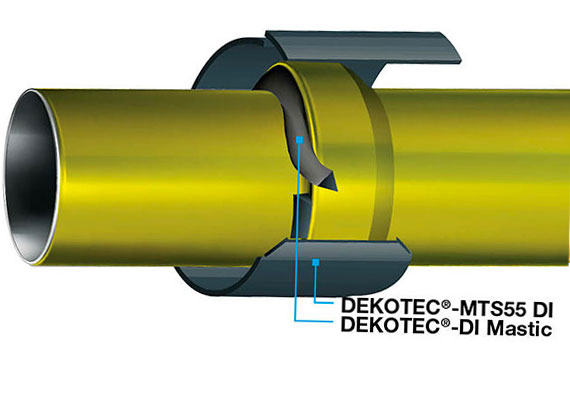

Pipe Sealing Solution

DEKOTEC®-MTS55 DI

DEKOTEC®-MTS55 DI in combination with DEKOTEC®-Mastic DI is a sealing system solution that provides protection against corrosion and root penetration at spigot and socket pipes, without a time-consuming heating process. With the added ability of been applied to pipes made from steel, cast iron, concrete and stoneware, as well as plastic coatings.

Product thickness: variable, on request

Design temperature from -35°C to +70°C

No primer

Complies with 14A-1 in accordance with ISO 21809-3

Stress class C50 in accordance with EN 12068, DIN 30672

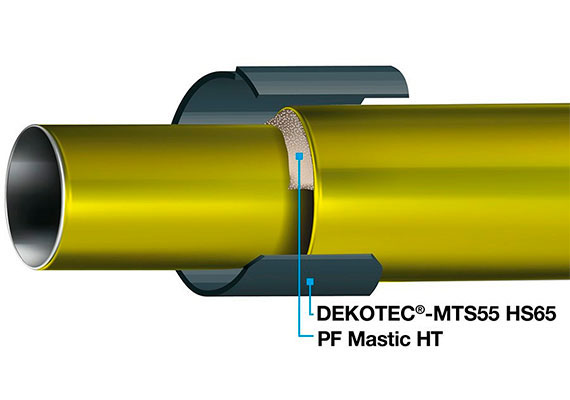

Extreme Shrinking Sleeve

DEKOTEC®-MTS55 HS65

DEKOTEC®-MTS55 HS65 is a heat-shrinkable sleeve with an extreme shrinking capacity of 65%. It is comprised of a robust electron beam cross-linked polyethylene carrier film and a mastic adhesive. The sleeve is quick and easy to apply, even to pre-installed components, without the need for a primer, saving you time and money.

Product thickness: variable, on request

Design temperature from -35°C to +70°C

No primer

Complies with 14A-2 in accordance with ISO 21809-3

Stress class C50 in accordance with EN 12068, DIN 30672

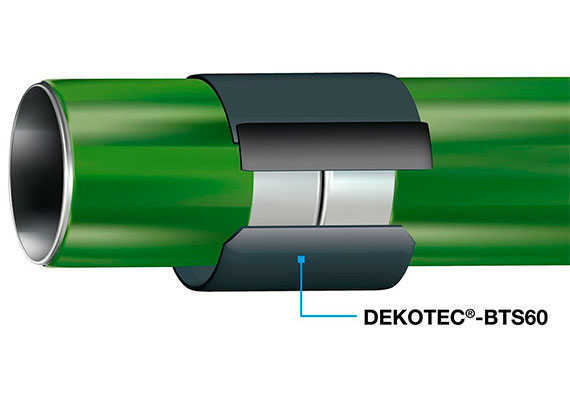

Thermal Indicator Shrink Sleeve

DEKOTEC®-BTS60

DEKOTEC®-BTS60 is a heat shrinkable sleeve with a thermal indicator, enabling you to visually monitor the level of heat that needs to be applied. Made form a robust polyethylene carrier film and a butyl-based coating. The natural flowing ability of the unique butyl rubber coating allows the product to repair itself in the event of minor mechanical damage in the coating.

Product thickness: 2,6 mm

Design temperature from -35°C to +70°C

No primer

Complies with 14A-2 in accordance with ISO 21809-3

Stress class C60 in accordance with EN 12068, DIN 30672

Corrosion Prevention for Welding Seams

DEKOTEC®-HTS70

DEKOTEC®-HTS70 is a heat-shrinkable sleeve comprised of an electron beam cross-linked polyethylene carrier film and a coating made from hot-melt adhesive. Providing a permanent corrosion prevention on welding seams on steel pipes and pipelines. DEKOTEC®-HTS70 can be used as a two-layer, or three-layer together DEKOTEC®-EP Primer, shrink sleeve system.

Product thickness: variable, on request

Design temperature from -35°C to +80°C

Complies with 14B-1 in accordance with ISO 21809-3

Stress class C60 in accordance with EN 12068, DIN 30672

Corrosion Prevention for Pipeline Welding Seams

DEKOTEC®-HTS90

DEKOTEC®-HTS90 is a heat-shrinkable sleeve consisting of an electron beam cross-linked polyethylene carrier film and a coating made from hot-melt adhesive. Providing a permanent corrosion prevention on welding seams on steel pipes and pipelines. DEKOTEC®-HTS90 can be used as a two-layer, or three-layer together DEKOTEC®-EP Primer, shrink sleeve system.

Product thickness: variable, on request

Design temperature from -35°C to +100°C

Stress class C80 in accordance with EN 12068, DIN 30672

Heat Shrinkable Sleeves

DEKOTEC®-HTS100

DEKOTEC®-HTS100 is a heat shrinkable sleeve for use at extremely high temperatures up to +100 °C. Fulfilling the requirements of ISO 21809-3 (14B-2) and EN 12068 in class C100. The sleeve is comprised of a robust electron beam cross linked polyethylene carrier film and hotmelt coating.

Product thickness: variable, on request

Design temperature from -35°C to +120°C

Complies with 14B-2 in accordance with ISO 21809-3

Stress class C100 in accordance with EN 12068, DIN 30672

Dekotec Shrink Sleeves
