Preformed Thermoplastic Equipment
Applicator torches & various accessories used for the application of preformed thermoplastic markings.
Applicator Torches

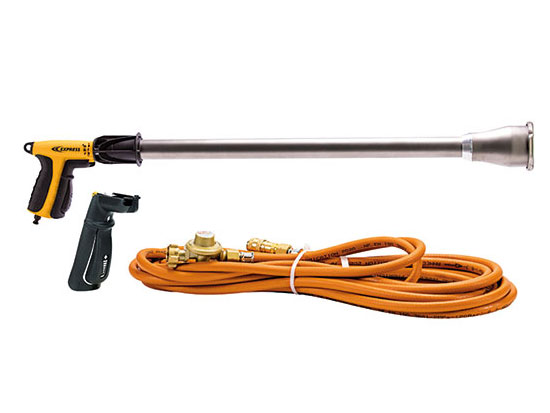

ZEBRA HEAT GUN
| Description | Zebra road marking gun with fixed 4 bar regulator, 10 metre flexible rubber hose, trigger, spare adjustable trigger + igniter & quick release coupling. |
| Weight | 3.56 kg |
| Power (BTU/h) | 319 000 |
| Power to 4 Bar | 90 kW |
| Power Source | Propane gas bottle |
| Best Suited For | PLASTIFORM PLAY & DECOR Markings. |
Wizz Burner
| Description | The Wizz Burner is a lightweight burner that produces a very powerful flame. It comes standard with a case, safety handle with piezo adjustable trigger, 10 metre hose, fixed 4 bar regulator & 600mm lance. |
| Weight | 3.65 kg |
| Power (BTU/h) | 341 000 |
| Power to 4 Bar | 150 kW |
| Power Source | Propane gas bottle |
| Best Suited For | PLASTIFORM® TRAFFIC Markings. |

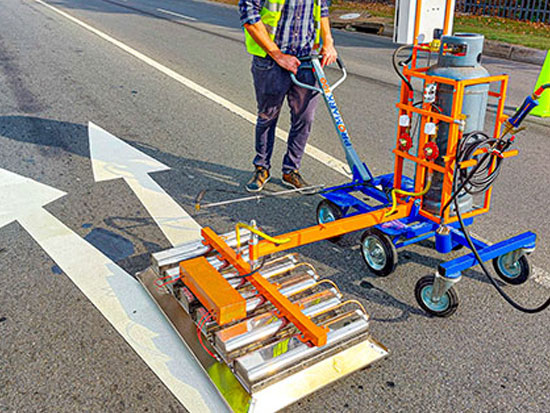

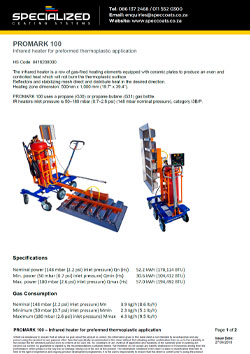

PROMARK 100
| Description | An infrared heater designed for the installation of preformed thermoplastic markings to asphalt or concrete surfaces. Product Consists Of: 6-wheel frame with a gas bottle holder, Wing-up heater with 6 IR units, Manual torch, Control unit, Gas regulators for heater and torch, Ignition system, Thermal sensor & Handle. |
| Weight | 77 kg |
| Product Dimensions | Folded: 700mm (w) x 1000mm (L) x 120mm (H) |
Applicator Accessories

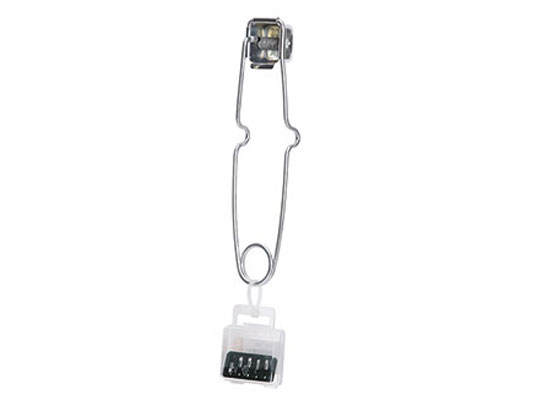

Igniter
| Description | Gasless storm-proof igniter for torch. |
| Weight | 0.24 kg |
| Dimensions | 30 x 11 x 3 cm |
| Length of The Product Alone | 20 cm |
| Height of The Product Alone | 30 cm |
| Weight of Bare Product | 0.1 kg |

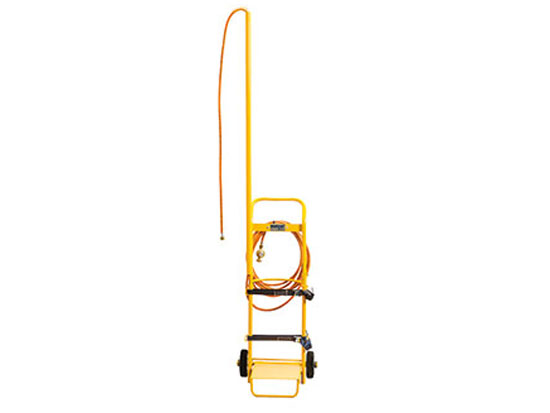

GAS CYLINDER TROLLEY
| Description | Gas cyclinder trolley used to carry 13 kg & 35 kg cylinders with hose extension & hose holder. |
| Weight | 8.3 kg |
| Dimensions | 70 x 45 x 22 cm |
| Height of The Product Alone | 63 cm |

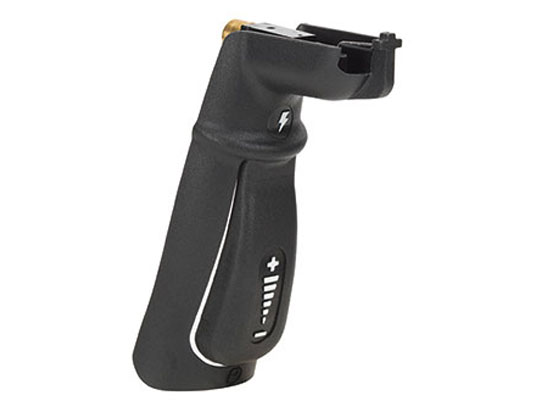

ADJUSTABLE TRIGGER + IGNITER
| Description | Set of spare parts - adjustable trigger + igniter specifically designed for the Hornet & Zebra heat guns. |
| Weight | 0.02 kg |
| Length of the Product Alone | 5cm |
| Width of the Product Alone | 5 cm |
| Height of the Product Alone | 1 cm |
| Weight of Bare Product | 20 grams |

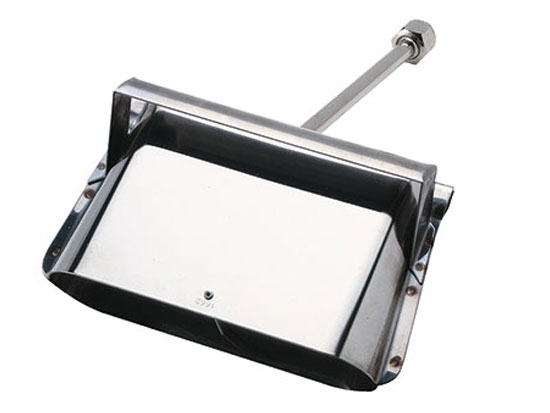

FLAT FLAME BURNER
| Description | Flat flame burner with rear air inlet nozzle & direct ambient air aspiration, producing an excellent flame in all positions. |
| Weight | 0.684 kg |
| Power | 151 kW |
| Debit | 11 777 kg/h |
| Flame Length | 600 mm |
| Dimensions of Product Alone | 32 x 19 x 9 cm |
| Weight of Bare Product | 0.570 kg |
