ZINCFIX®
Original
ZINCFIX® Original is a two-component, solvent-free, zinc-rich amine-cured epoxy developed for the repair and protection of damaged galvanized and mild steel. Containing 82% zinc in the dry film, it forms a strongly adherent anti-corrosive coating that helps restore protection where galvanizing has been cut, welded, mechanically damaged or affected by corrosion.

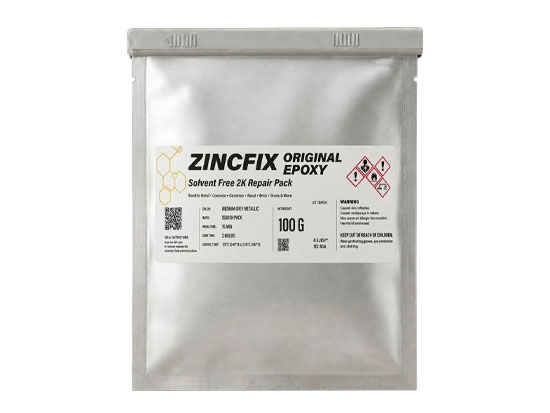

Supplied in a convenient 100 g squish repair pack, ZINCFIX® Original combines accurate small-quantity mixing with modern solvent-free epoxy technology, helping minimise waste while providing a practical solution for localized galvanizing repairs.

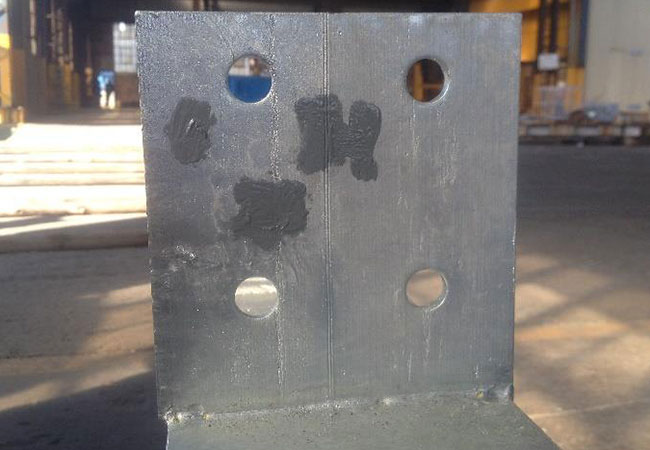

Hot Dip Galvanized Steel Repairs
When suitably cleaned steel is dipped in molten zinc at 450°C, a coating comprising of a series of iron/zinc alloy layers, overcoated with relatively pure zinc is formed.
The hot dip galvanizing coating provides a barrier against corrosion but additionally, provides sacrificial protection when the coating is site cut, welded or mechanically damaged.
In order to prevent this sacrificial protection property prematurely consuming the surrounding coating, repair of the damaged area using ZINCFIX® Original is recommended.
Although the medium grey metallic colour of ZINCFIX® Original will stand out on the bright shiny surface of newly exposed zinc, it will blend into a very similar finish once the stable matt grey zinc carbonate film has formed.
Performance Characteristics
- High zinc content
Contains 82% zinc in the dry film for effective anti-corrosive protection. - Designed for galvanizing repair
Restores protection to areas where hot-dip galvanizing has been cut, welded or mechanically damaged. - Solvent-free epoxy technology
100% volume solids formulation provides high film build without solvent evaporation. - Convenient squish pack
Part A and Part B are supplied together in a 100 g repair pack for accurate mixing. - Reduced material wastage
Small pre-measured packs are ideal for localized repairs where only limited material is required. - Excellent corrosion protection
Suitable for rust prevention and repair of corroded steel. - Outstanding adhesion
Provides strong adhesion to properly prepared galvanized and mild steel. - Surface tolerant
Designed to provide effective repair performance with practical surface preparation. - Single-coat application
Achieves the specified 100 µm DFT in one coat. - Fast-curing technology
Supports efficient repair and maintenance operations. - Early water resistance
Provides useful early resistance following application. - Excellent flow and smoothing
Helps produce a smooth, uniform repaired surface. - Compatible with conventional coating systems
Can be overcoated with conventional paint systems where required. - High temperature resistance
Withstands dry continuous temperatures up to 120°C. - Cold-temperature curing
The coating chemistry will cure down to 0°C, although specified application conditions must still be observed. - Tested corrosion resistance
Datasheet reports 1000-hour controlled condensation/humidity and 1000-hour salt spray testing.
Intended Uses
ZINCFIX® Original is specifically designed for the repair of damaged hot-dip galvanized coatings and the corrosion protection of properly prepared steel.
Hot-dip galvanizing provides both barrier and sacrificial corrosion protection. When galvanized steel is site-cut, welded or mechanically damaged, the protective zinc layer can be removed locally, exposing the underlying steel. Leaving these areas untreated can cause the surrounding zinc coating to provide sacrificial protection to the exposed steel, progressively consuming the adjacent galvanizing.
ZINCFIX® Original provides a practical means of restoring protection to these localized areas by applying a zinc-rich epoxy coating directly to the prepared repair.
It is suitable for:
- Repairing damaged hot-dip galvanizing
- Repairing galvanized steel after welding
- Treating site-cut galvanized components
- Repairing mechanically damaged galvanizing
- Corrosion repair on mild steel
- Anti-corrosive priming of steel
- Localized maintenance and repair
- Workshop and site repairs
The product can also be used as an anti-corrosive primer for steel and subsequently overcoated with conventional coating systems.
Typical Applications:
- Hot-dip galvanized structural steel
- Welded galvanized components
- Site-cut galvanized steel
- Galvanized steel repair
- Damaged galvanizing
- Mild steel corrosion repairs
- Structural steel connections
- Galvanized brackets and supports
- Handrails and balustrades
- Galvanized fencing
- Gates
- Steel frames
- Transmission and utility structures
- Galvanized pipes and fittings
- Steel fabrication
- Industrial equipment
- Machinery
- Infrastructure steelwork
- Construction steelwork
- Maintenance repairs
- Workshop fabrication
- Field repairs
- Localized corrosion repair
The compact 100 g pack makes ZINCFIX® Original particularly practical for small repair areas where preparing a conventional multi-component coating in larger quantities would create unnecessary waste.
Technical Information:
- Product Type: Zinc-rich epoxy repair coating
- Technology: Two-component, solvent-free, amine-cured epoxy
- Primary Use: Cold galvanizing and galvanized steel repair
- Colour: Medium grey metallic
- Finish: Smooth
- Density – Component A: Approximately 3.98 kg/L
- Density – Mixed: Approximately 3.59 kg/L
- Volume Solids: 100%
- Zinc Content in Dry Film: 82%
- Typical Dry Film Thickness: 100 µm DFT
- Theoretical Coverage: Approximately 10 m²/L at 100 µm DFT, before allowance for loss factors
- Coverage per 100 g Pack: Approximately 0.3 m² at 100 µm DFT, before allowance for loss factors
- Application Methods: Brush or plastic applicator
- Number of Coats: 1
- Pot Life at 25°C: 15 minutes after mixing
- Dry Continuous Temperature Resistance: 120°C
- Touch Dry at 25°C: 2 hours
- Hard Dry at 25°C: 6 hours
- Full Cure at 25°C: 7 days
- Minimum Overcoating at 25°C: 3 hours
- Maximum Overcoating Without Abrasion at 25°C: 48 hours
- Minimum Surface Temperature: 7°C or 3°C above dew point
- Maximum Surface Temperature: 60°C
- Minimum Ambient Temperature: 8°C
- Maximum Ambient Temperature: 45°C
- Maximum Relative Humidity: 90%
- Pack Size: 100 g squish repair pack
- Shelf Life: 12 months at 25°C
- Extended Shelf Life: Up to 24 months where stock is turned every six months to delay zinc settlement, subject to inspection
- Storage Temperature: 5–35°C
The combination of 100% volume solids, 82% zinc in the dry film and a typical 100 µm DFT in a single coat provides the high-build zinc-rich protection required for localized steel and galvanizing repairs.
At 25°C, the coating is touch dry after approximately 2 hours, hard dry after 6 hours and fully cured after 7 days. It can be overcoated without abrasion between approximately 3 and 48 hours under the specified conditions.
