PLASTILINE® Thermoplastic Ultra-Rib
Thermoplastic, glass reinforced, ester rosin derived rib line thermoplastic.
PLASTILINE® ThermoPlastic ULTRA RIB is used for creating ribbed, dotted, and high profiled markings with outstanding adhesion and deformation resistance. The ULTRA RIIB is reinforced with glass fibres, is highly adhesive, fast setting and resistant to deformation at high temperatures.
Glass Bead Content: 40%.
Luminance Factor: LF6 ≥ 0.80 (On white) and LF2 ≥ 0.50 (On yellow).
Specification compliance: EN 1436, EN 1871 & BS 3262.
Available in 25 kg meltable bags.
Features & Benefits
- High hardness with excellent resistance to impact / flattening
- Excellent adhesion to asphalt
- Excellent adhesion to primed concrete
- Contains premix beads for maintained retroreflective properties
- Flexible application thickness
- Quick drying ‹less than 2 minutes down to 10°C.
- Formulated for screed & extrusion application
- Lead-free
- Extremely environmentally friendly product
- Supports workers safety
Intended Uses

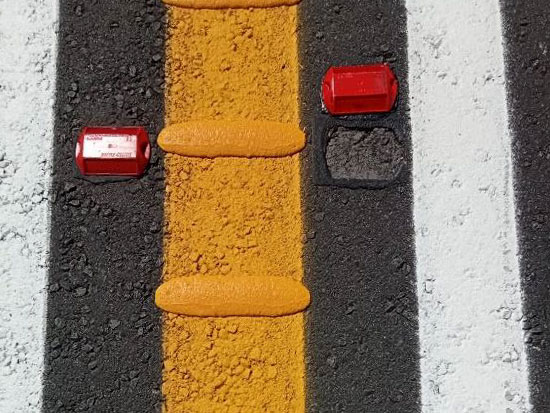

Rumble lines create a physical and audio warning when driven on and provide outstanding day time, night time and wet visibility. This profiled / structured marking is applied with automatic rib line and profile extrusion / screeding equipment.
PLASTILINE® ThermoPlastic ULTRA RIB is a 100% solids, hot applied road marking containing pigments, glass beads, ester rosin binder and filler, which when heated becomes liquid and when cooled solidifies to provide an exceptionally durable pavement & road marking. Supplied as a powder in meltable bags.
This petroleum derived formulation is best used for long-line applications. Formulated to comply with EN 1436 and EN 1871.
Systems
| Systems | Typical Thickness (DFT) | Typical Yield | Recommended Drop On | Typical Drop on Yield |
|---|---|---|---|---|
| Base Layer | 2 - 3 mm | 4 - 6 kg/m² | Reflective Glass Beads EXTRA 125-850 MP | 0.600 kg/m² |
| Profile | 8 mm | 16 kg/m² | Reflective Glass Beads EXTRA 125-850 MP | 0.600 kg/m² |
Standard Colours
White
Yellow
Please Note: Colour swatches and illustrations displayed are only to be used as a guide and can vary from the original.
