Road Marking Paint Application Equipment
A range of equipment used for the application of paint to road surfaces.
Electric

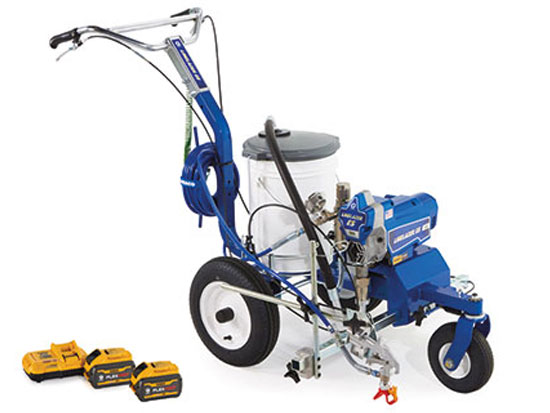

GRACO® LINELAZER ES 500
| Driving Method | Manually propelled battery operated walking system. |
| Power Supply | 2 x 54V DeWALT® FlexVolt 9.0 ah battery with DeWALT® Fan-cooled fast charger. |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 1.8 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 1 x mechanical gun. |
| Weight | 55 kg |

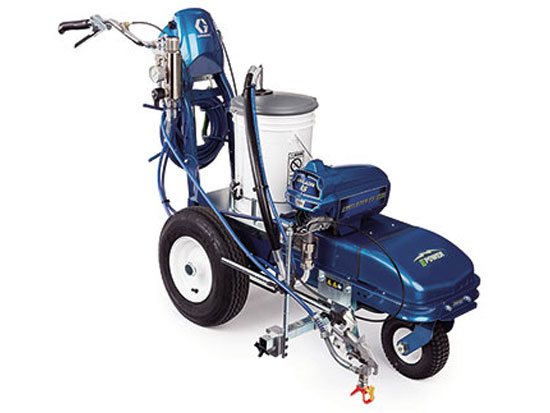

GRACO® LINELAZER ES 1000
| Driving Method | Manually propelled battery operated walking system. |
| Power Supply | 1x 12 V battery with 230 V inverter incl. 30 cm cable set. |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 2.3 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 1 x mechanical gun. |
| Weight | 131 kg |

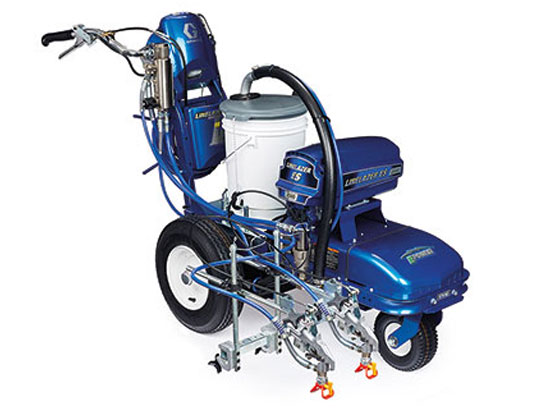

GRACO® LINELAZER V ES 2000
| Driving Method | Manually propelled battery operated walking system. |
| Power Supply | 2 x 12 V battery with 230 V inverter incl. 30 cm cable set. |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 4.1 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. HP Automatic: (2 x auto gun) or (1 x auto + 1 x mechanical gun). |
| Weight | 165 kg |
Petrol

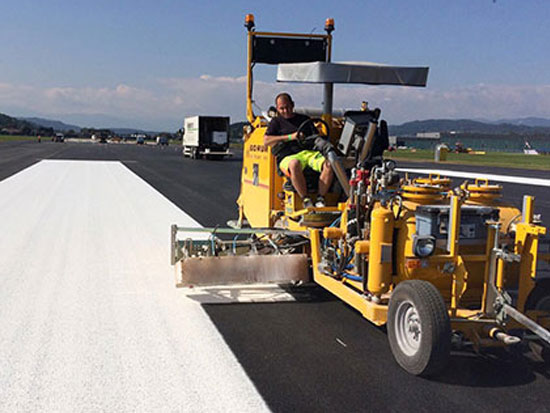

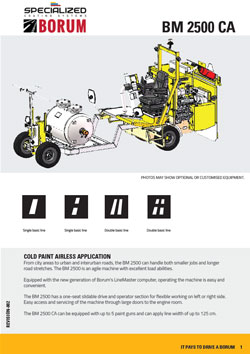

BORUM® Master 2500 CA Road Marking Machine
From city areas to urban and interurban roads, the BM 2500 can handle both smaller jobs and longer road stretches. The BM 2500 is an agile machine with excellent load abilities. Equipped with the new generation of Borum's LineMaster computer, operating the machine is easy and convenient.The BM 2500 has a one-seat slidable drive and operator section for flexible working on left or right side. Easy access and servicing of the machine through large doors to the engine room.

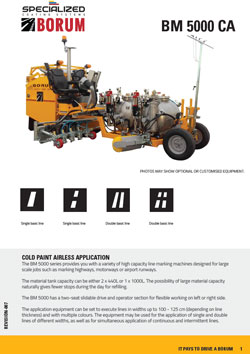

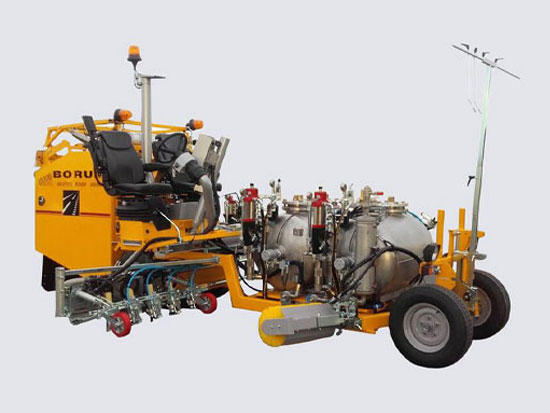

BORUM® Master 5000 CA Road Marking Machine
The BM 5000 series provides you with a variety of high capacity line marking machines designed for large scale jobs such as marking highways, motorways or airport runways.The material tank capacity can be either 2 x 440L or 1 x 1000L. The possibility of large material capacity naturally gives fewer stops during the day for refilling.The BM 5000 has a two-seat slidable drive and operator section for flexible working on left or right side.The application equipment can be set to execute lines in widths up to 100 - 125 cm (depending on line thickness) and with multiple colours. The equipment may be used for the application of single and double lines of different widths, as well as for simultaneous application of continuous and intermittent lines.

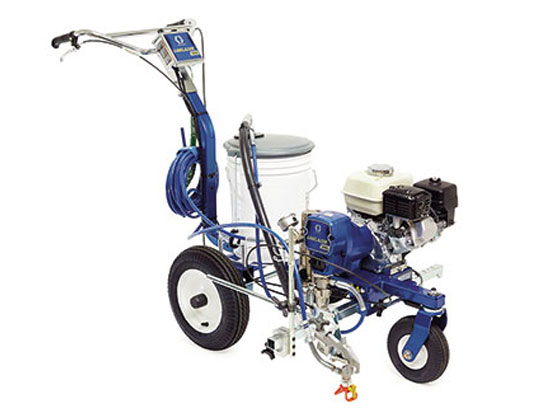

GRACO® LINELAZER 3400
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 2.5 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 2.8 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 1 x mechanical gun. |
| Weight | 72.5 kg |

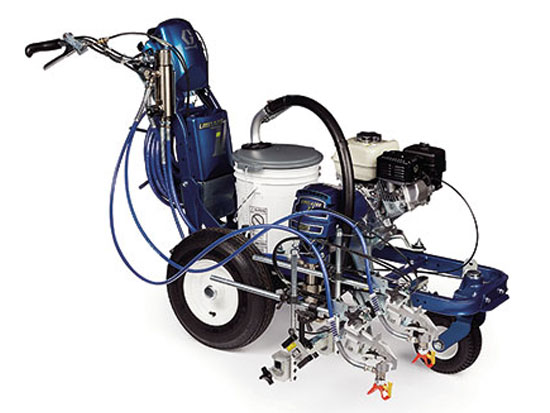

GRACO® LINELAZER V 3900
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 2.5 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 4.7 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. HP Automatic: (2 x auto gun) or (1 x auto + 1 x mechanical gun). |
| Weight | 109 kg |

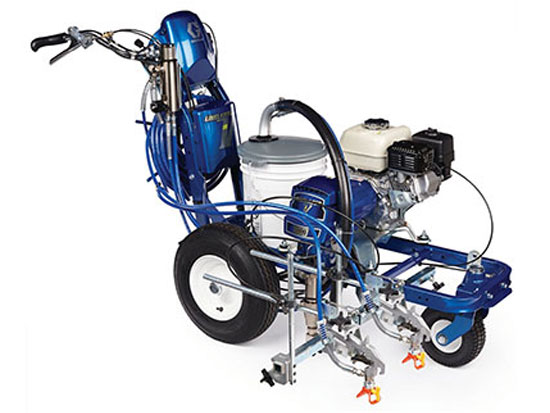

GRACO® LINELAZER V 5900
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 3.6 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Mechanical. |
| Max Flow (Litre/ min) | 6 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. HP Automatic: (2 x auto gun) or (1 x auto + 1 x mechanical gun). |
| Weight | 121 kg |

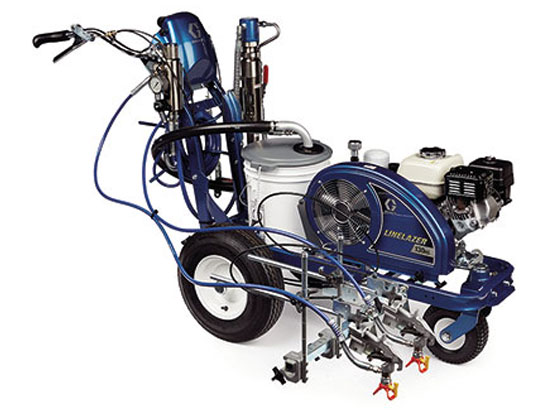

GRACO® LINELAZER 130 HS
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 2.5 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Hydraulic. |
| Max Flow (Litre/ min) | 4.9 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. |
| Weight | 119 kg |

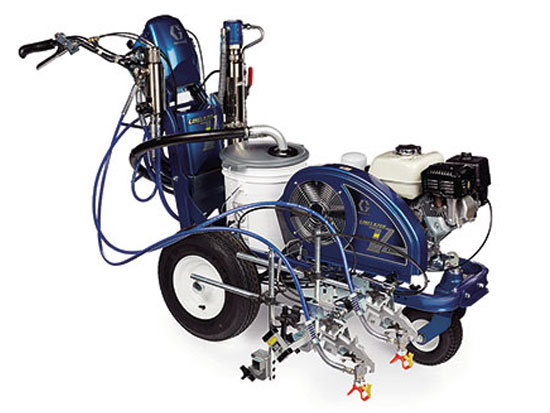

GRACO® LINELAZER V 200 HS
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 3.6 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Hydraulic. |
| Max Flow (Litre/ min) | 8.14 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit or PBS Closed Compressor Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. HP Automatic: (2 x auto gun) or (1 x auto + 1 x mechanical gun) |
| Weight | 146 kg |

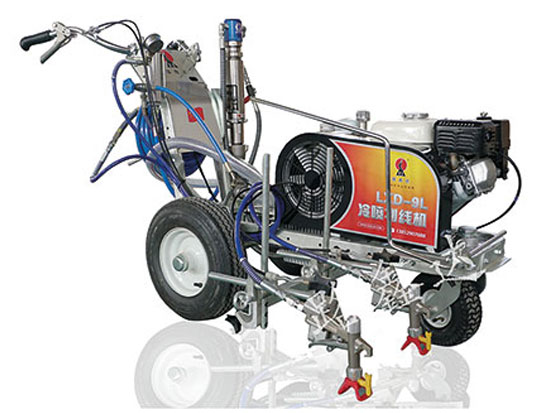

PLASTILINE® LXD 9
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 3.1 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Hydraulic. |
| Max Flow (Litre/ min) | 9 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit or PBS Closed Compressor Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. |
| Weight | 130 kg |

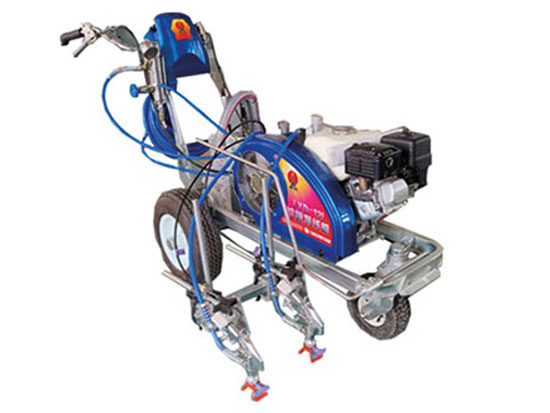

PLASTILINE® LXD 12
| Driving Method | Manually propelled petrol engine operated walking system. |
| Fuel Capacity | 3.1 Litre |
| Line Applications | Flat line markings. |
| Pump Type | Endurance Pump - Hydraulic. |
| Max Flow (Litre/ min) | 12 |
| Glass Bead Dispenser | EZ Bead Dispenser Kit or PBS Closed Compressor Kit optional. |
| Gun Attachment | Standard: 2 x mechanical gun. |
| Weight | 145 kg |

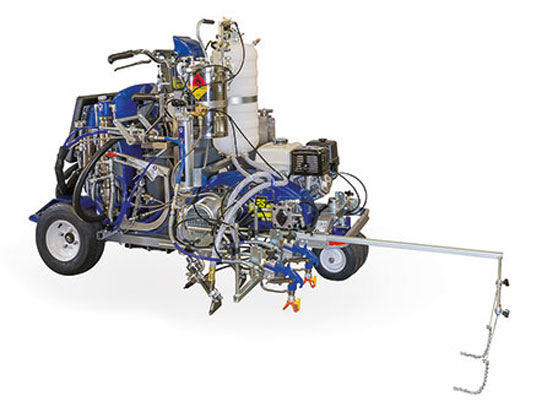

GRACO® LINELAZER V 250 MMA 98:2 (AUTOMATIC MIX & SPRAY)
| Driving Method | Self propelled petrol engine system. |
| Fuel Capacity | 5.3 Litre |
| Line Applications | Flat line markings. |
| Pump Type | MMA Pump - Hydraulic. |
| Max Flow (Litre/ min) | 9.5 |
| Glass Bead Dispenser | 1 X Pressurized bead tank. |
| Gun Attachment | HP Automatic: (2 x auto gun) or (1 x auto + 1 x mechanical gun) |
| Weight | 405 kg |

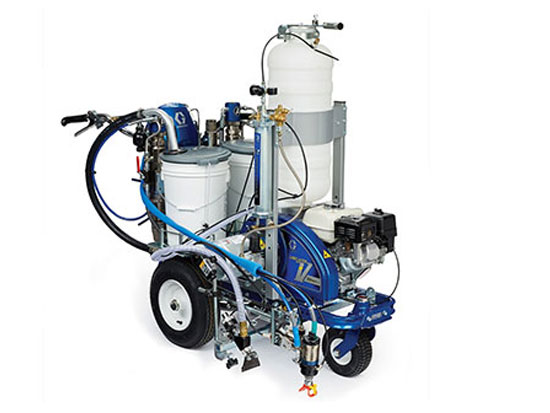

GRACO® LINELAZER V 200 MMA 1:1
The Graco LineLazer V 200MMA 1:1 is a reliable walk behind striper developed to deliver superior MMA 1:1 performance and guarantees ratio assurance in a compact package. There is no need for expensive solvents, or solvent pumps and tanks to maintain which also eliminates solvent disposal concerns. The Graco Fusion Air-Purge Gun mixes the material “at the gun” with an instant air purge after every line, clearing all material in the mixing chamber and eliminating build-up of material on the tip.
For more information and to see the full range, please download the brochure.

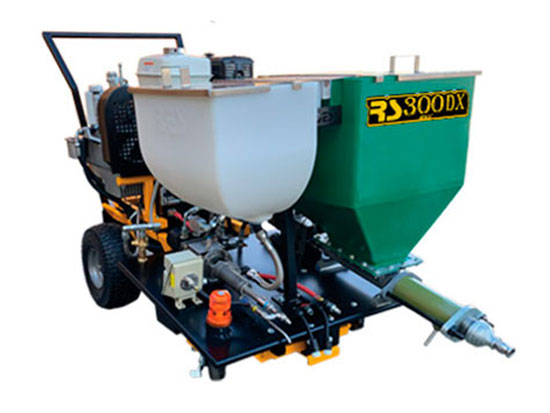

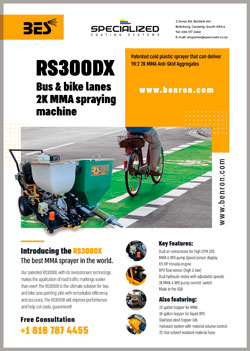

RS300DX Bus & Bike Lane 2K MMA Spraying Machine
RS300DX device utilizes advanced technology to simplify the application of MMA (Methyl Methacrylate) and BPO (liquid Benzoyl Peroxide) anti-skid road traffic markings. Specifically designed for bus and bike lane painting jobs, the RS300DX offers improved efficiency and accuracy. By incorporating the RS300DX into your operations, you can expect enhanced performance and cost savings. It is the ultimate solution for streamlining road marking tasks.
For more information, please download the brochure.
Roadpak Systems

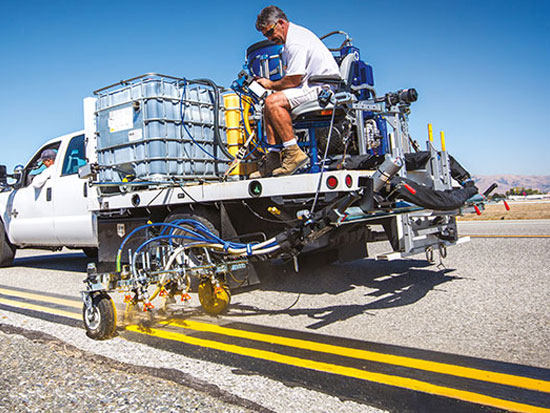

GRACO® ROADLAZER ROADPAK SYSTEMS
The Graco RoadLazer RoadPak Systems have been the go-to systems for many road & airport striping applications. With their modular design, the Graco RoadLazer RoadPak Systems are designed to be as easy to use as a walk behind striper, and their high productivity means that you can stripe with high production Speeds normally only found on long line trucks.
Accessories & Ride On Systems

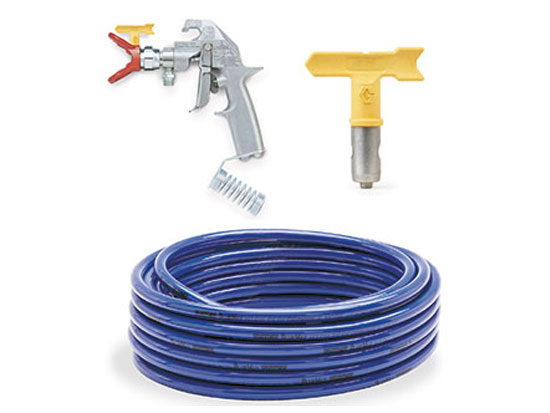

GRACO® LINELAZER ACCESSORIES
Complete Range of Graco LineLazer Accessories:
Gun kits including airless spray guns (manual or automatic), vertical gun bars, horizontal gun bars, hoses & gun cables (manual or automatic).
Complete range of Linelazer SwitchTips for all your striping needs.
LineLazer easy out manifold filters.
EZ Bead Dispensing Systems & EZ Bead Pressurized Dispensing Systems.
PLASTILINE® GLASS BEAD DISPENSER
Features:
Robust lightweight design.
Provides even glass bead distribution.
Minimizes glass bead wastage.
Technical Details
150mm wide dispersion.
5 kg glass bead capacity.
PLASTILINE® LXD BOOSTER VEHICLE
| Speed | 16 km/h forward and 10 km/h reverse |
| Colour | Yellow or Blue depending on availability |
| Engine | Honda GX Engine |
| Compatibility | PLASTILINE® Manual Screed Machine LXD 860 PLASTILINE® Rumble & Screed LXD Automatic |
| Weight | 80 kg |
GRACO® LINEDRIVER HD 200
| Speed | 16 km/h forward and 10 km/h reverse |
| Colour | Blue |
| Engine | Honda GX Engine |
| Compatibility | ThermoLazer 200 TC ThermoLazer 300 TC ThermoLazer ProMelt |
| Weight | 125 kg |

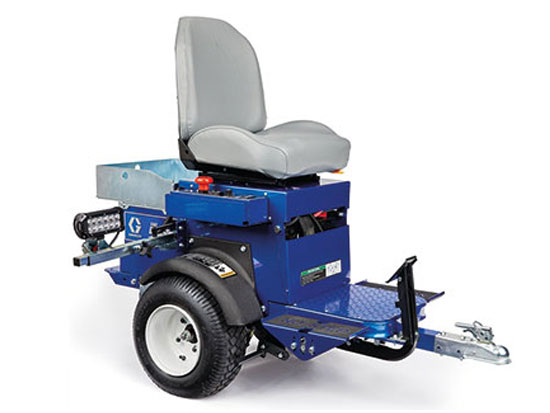

GRACO® LINEDRIVER ES
| Speed | 16 km/h forward and 10 km/h reverse |
| Colour | Blue |
| Battery | 3 x 24 V, 50 Ah Lithium |
| Compatibility | Graco manually propelled battery operated walking systems |
| Weight | 174 kg |
