Borum® Master 2500 CA Road Marking Machine
Cold Paint Airless Application
Description
From city areas to urban and interurban roads, the BM 2500 can handle both smaller jobs and longer road stretches. The BM 2500 is an agile machine with excellent load abilities. Equipped with the Borum LineMaster computer, operating the machine is easy and convenient.The BM 2500 has a one-seat slidable drive and operator section for flexible working on left or right side. Easy access and servicing of the machine through large doors to the engine room. The BM 2500 CA can be equipped with up to 5 paint guns and can apply line width of up to 125 cm.
Line Types that can be applied
Single Basic Line
Single Line
Double Line
Double Basic Line
Machine Info
Engine
- Manufacturer : Kubota
- Cooling : Water
- RatedPower : 44 kW
- Cylinder : 4 stroke 2400 cm³
- Type : Turbo (Diesel)
- Approval : EU Stage IIIA resp. TIER 3
Compressor
- Compressor Capacity : Screw compressor. 1800 L/min @ 10 bar Integrated oil-cooling system. Air-cooler incl. water separator.
Filling Capacities
- Fuel tank capacity : 2x 50 L
- Hydraulic tank size : 70 L
- Bead capacity : 115 L/170 kg. Pressurized (max 1.2 bars)
Material Tank
- Material Tank : 440 L or 2x 220 L
Driving Properties
- Drive angle : 12° / 21% (5000 kg)
- Turning radius : 3.45 m
- Steering : Hydraulic dual torque steering
Transmission
- Hydrostatic transmission : For variable speed, forward/backwards
- Speed : 0-16 km/h
Electrical System
- Electrical system : 12 V / 150 Amp
Control Unit
- Borum LineMaster : Program up to 99 different line types. Organise lines in up to 30 marking programs. 8" display. Transfer of daily marking reports. Data about road marking jobs can be accessed online (optional).
Colour
- Colour : Borum Yellow (Other colours available on request)
Dimensions
- Length : 4750 mm
- Width : 1180 mm without equipment
- Height : 2520 mm
Application Method

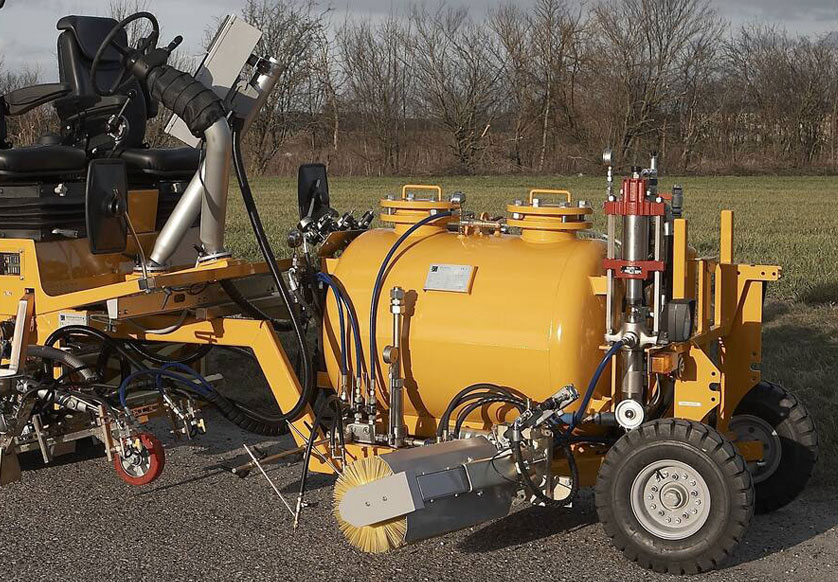

Non-Pressurized Black Steel Tank
The material tank is fitted with two larger filling holes, this makes the filling process easy to manage. In addition, the large filling holes also make cleaning of the tanks more accessible.Agitator (mixer) Driven by a hydraulic motor and with the manually operated reversing valve.

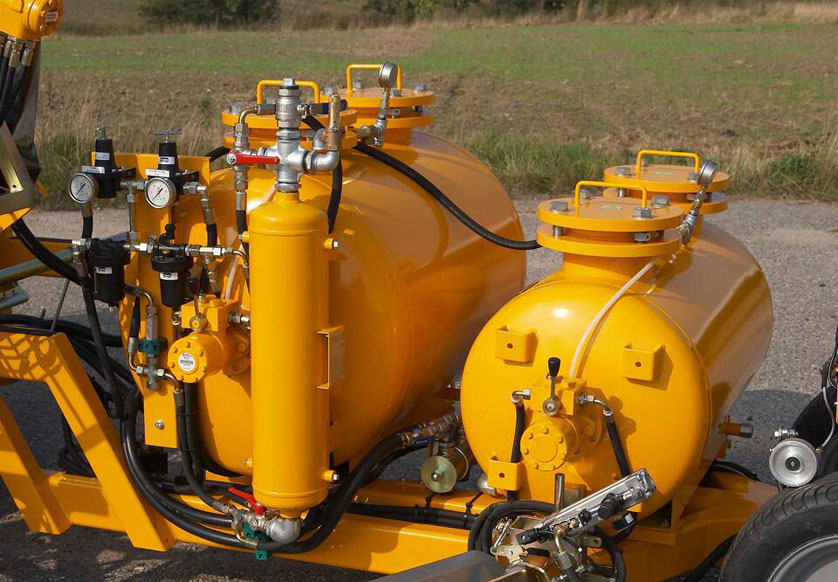

Stainless Tank (Option)
Material tank and filters in stainless steel are recommended for water and ammonium based paints.

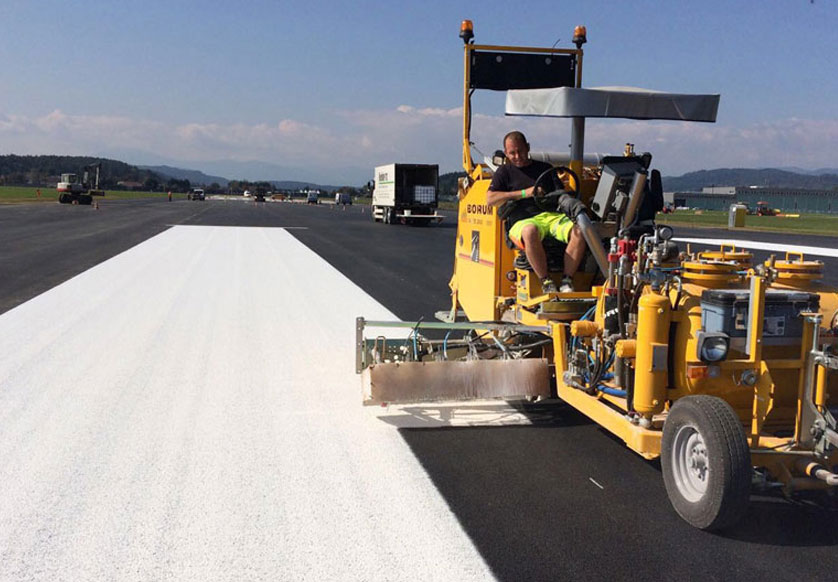

Airless Cold Paint Equipment
High-pressure airless spraying uses a high-pressure airless piston pump to spray the paint. This method can apply paints of high viscosity, and apply relatively thick layers in a single pass. However, the paint cannot be mixed in with glass beads as in the case of atomizing spray equipment due to the pump.

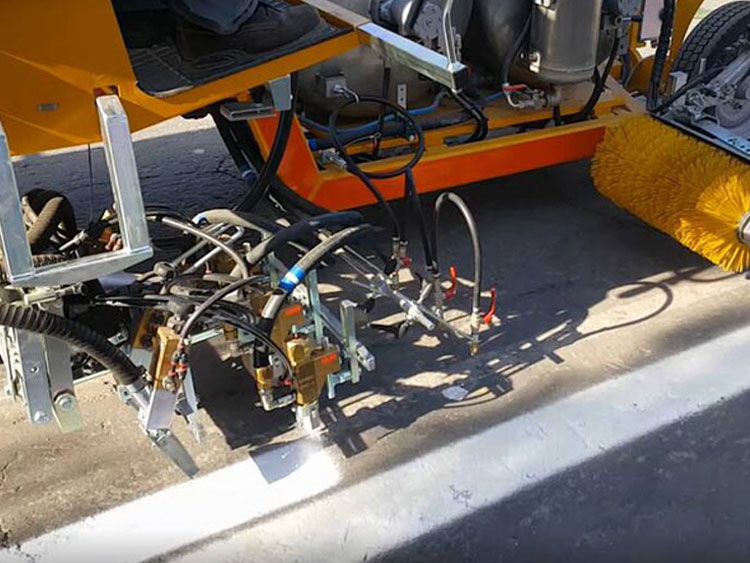

Cold Paint Equipment Specifications
Sliding retainer frame, upon which 1-3 paint guns and 1-3 bead guns can be attached as standard. You can also opt for the option wide retainer on which up to 5 paint guns and 5 bead guns can be provided. Easily slideable retainer from side to side for an optimal working position. Ground distance is maintained by retainer wheel to ensure a constant road marking width.Lifting of retainer is done from the operator's seat. The machine can be equipped with multiple material tanks, so that dual-color marking can be carried out.Working speed can be up to 15 km/h depending on the conditions, e.g. material, line type, and operator experience.
BM Cold Paint Airless Gun
Automatic high-performance spray gun. Nozzle set for water-based, solvent-based and high solid paints. Possibility to apply line widths up to 25 cm with standard nozzles depending on line thickness, work conditions, and application speed. You can also choose from a wide range of nozzle sizes depending on your requirements. High-pressure filter unit with integrated pulsation damper. Easy cleaning and maintenance.

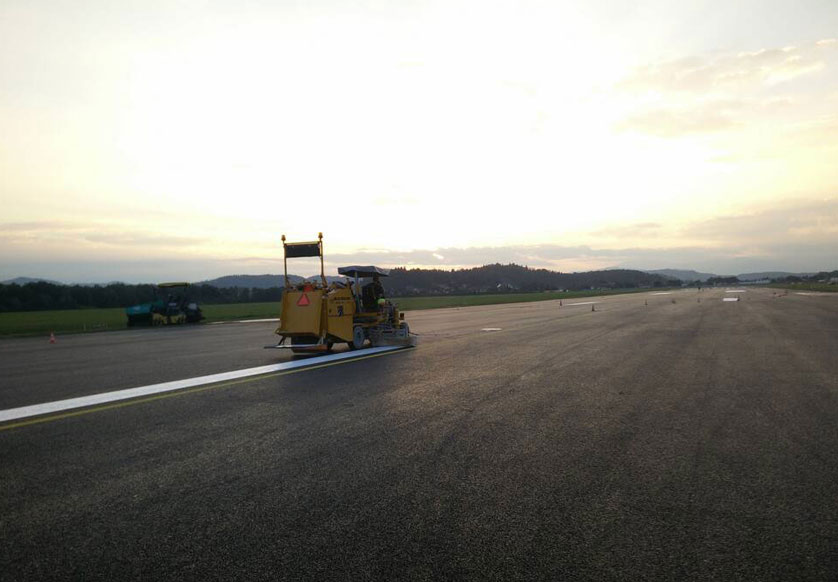

Advantages of Cold Paint Material
High-pressure airless spraying uses a high-pressure airless piston pump to spray the paint. The airless spray paint is sharper and smoother than atomized spray as there is no high-speed airflow to scatter any rebounding paint. The marked lines are neat and more clear-cut compared to atomizing spray paint. This method can apply paints of high viscosity, and apply relatively thick layers in a single pass. However, the paint cannot be mixed in with glass beads as in the case of atomizing spray equipment due to the pump.
Cleaning System
10L pressure solvent tank for cleaning of hoses and paint guns.

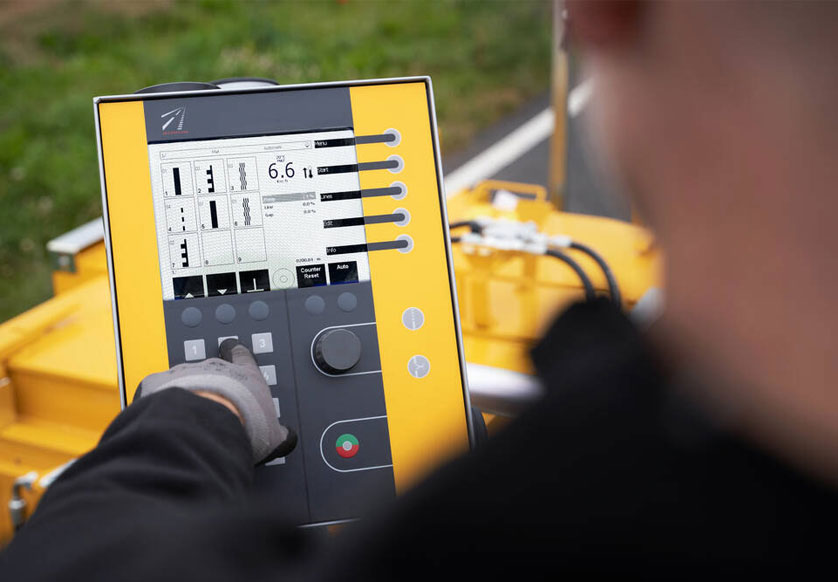

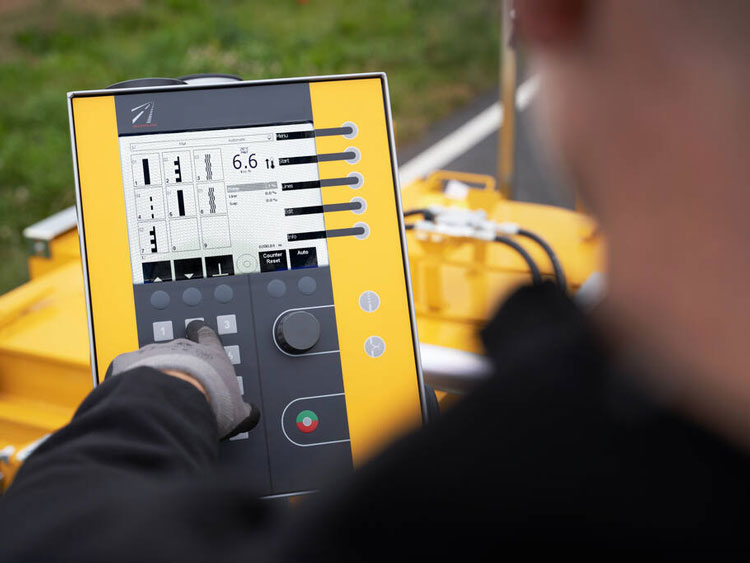

LineMaster Features
The Borum LineMaster control unit is an easy way of setting and controlling your line marking jobs. The LineMaster is attached to the operator's section of the machine and gives you full control of all your line marking tasks, from line application and pre-marking to reporting and invoicing. It is possible to store up to 99 different line types, and to arrange these in up to 30 different marking programs. You are also able to pre-set line widths, line types and different combinations to have them ready for marking, and can instantly adjust them on the go.Furthermore, you are able to view the status of various parts of the machine (e.g. compressor) on the computer screen that will help with correctly maintaining the machine and avoiding break downs.

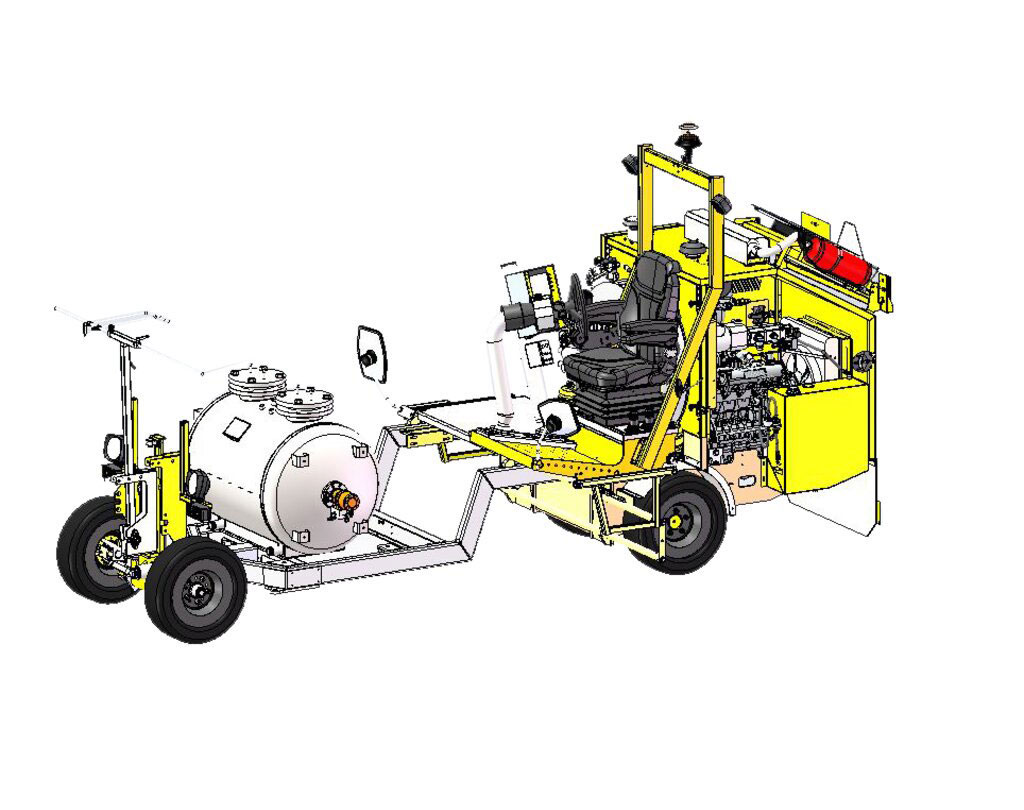

Technical Drawings

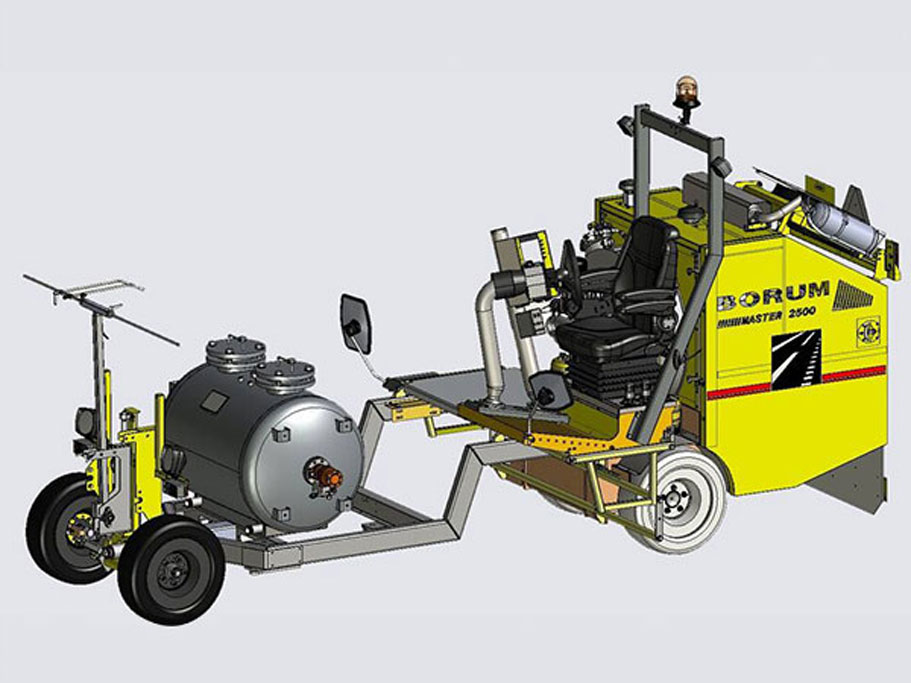

Knowing the BM 2500

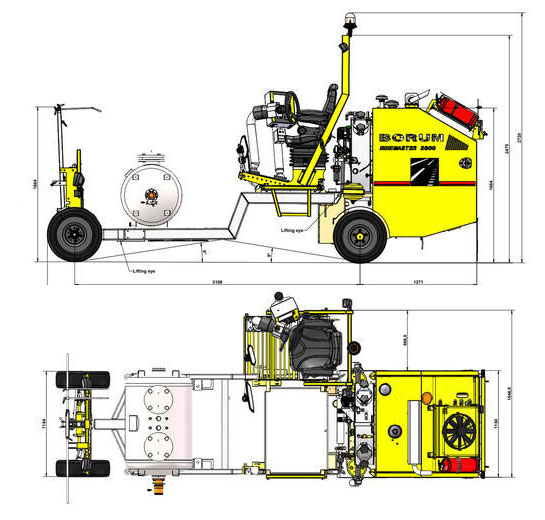

Dimensions
Extra Equipment

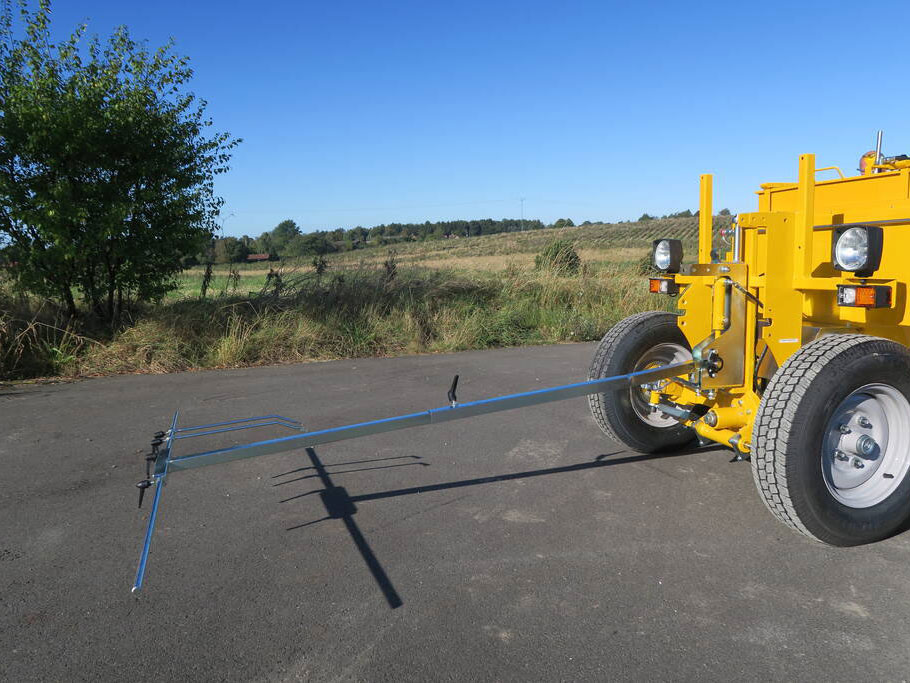

Pointer Turning with Steering
With hydraulic lifting system.

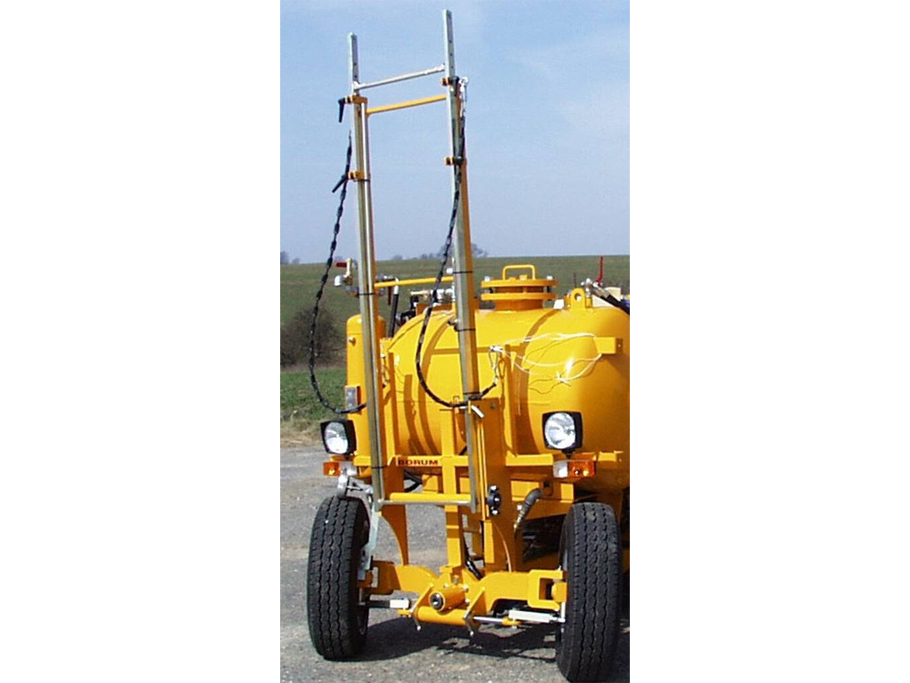

Fixed Pointer
With hydraulic lifting system.

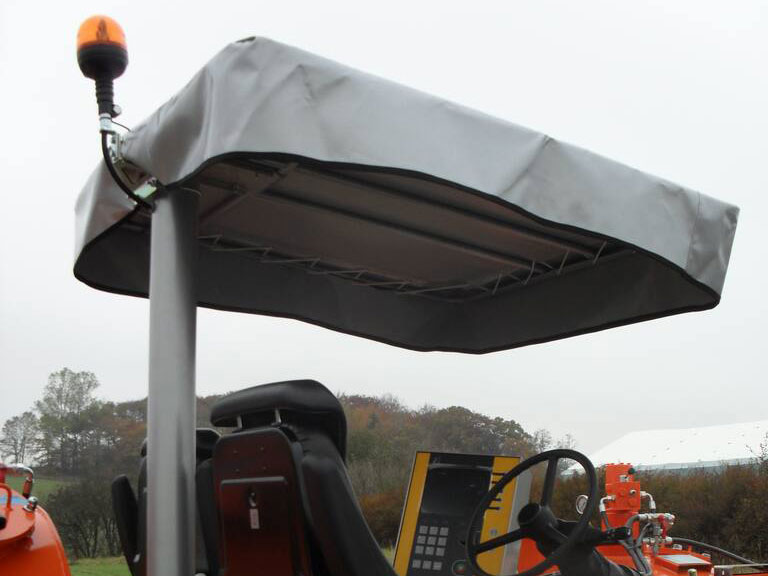

Sunshade with 1 Rotating Light

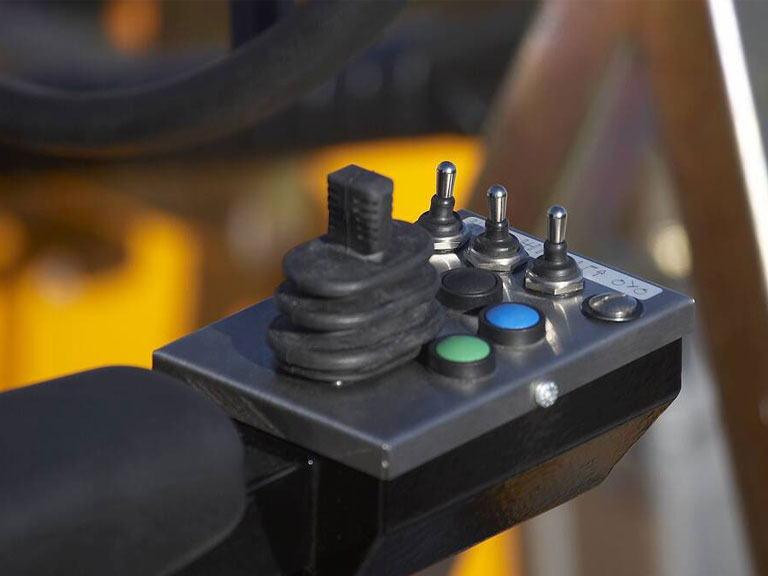

Cruise Control

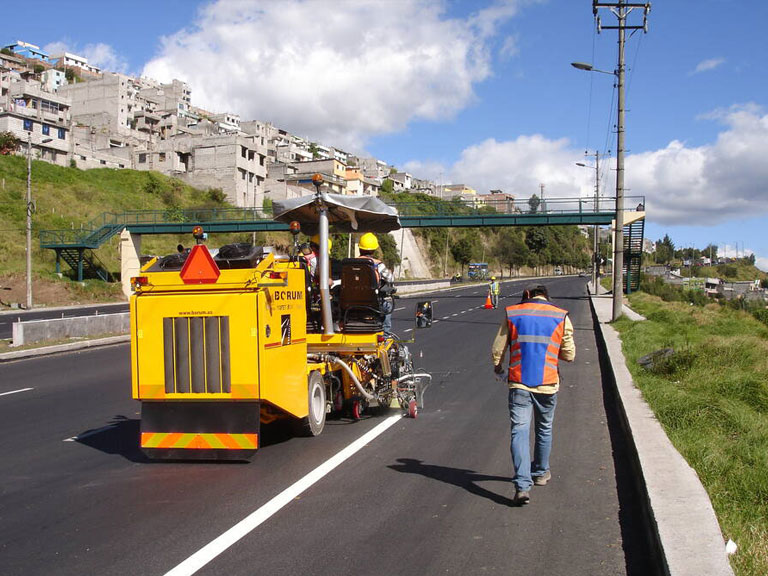

Remote Control for BM LineMaster

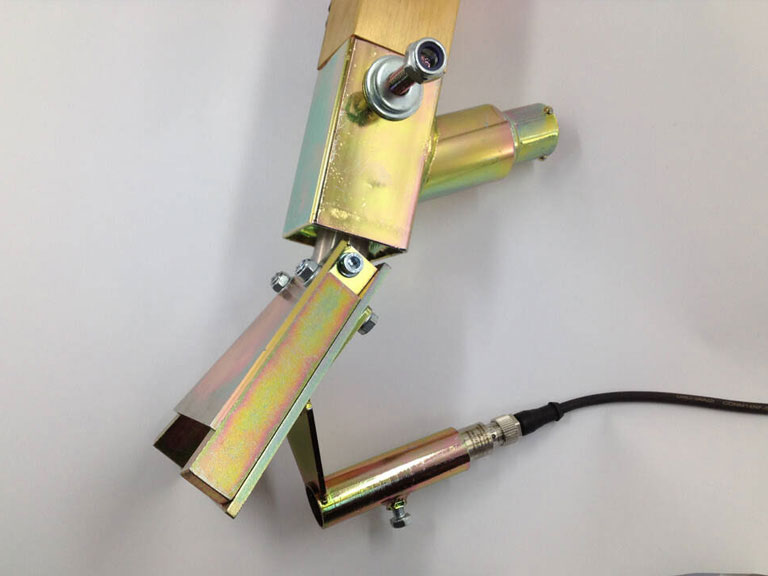

Bead ALarm Mounted on Bead Gun

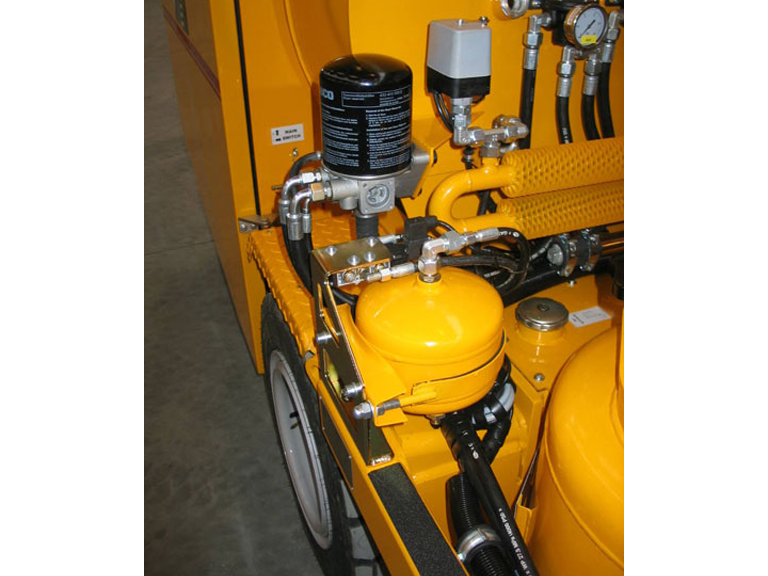

Air Drier for Bead Tank

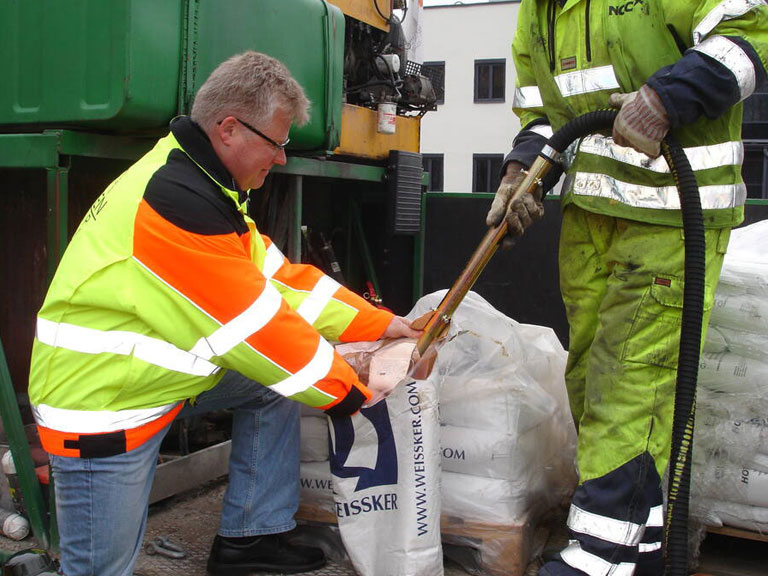

Ejector Filling of Bead Tank

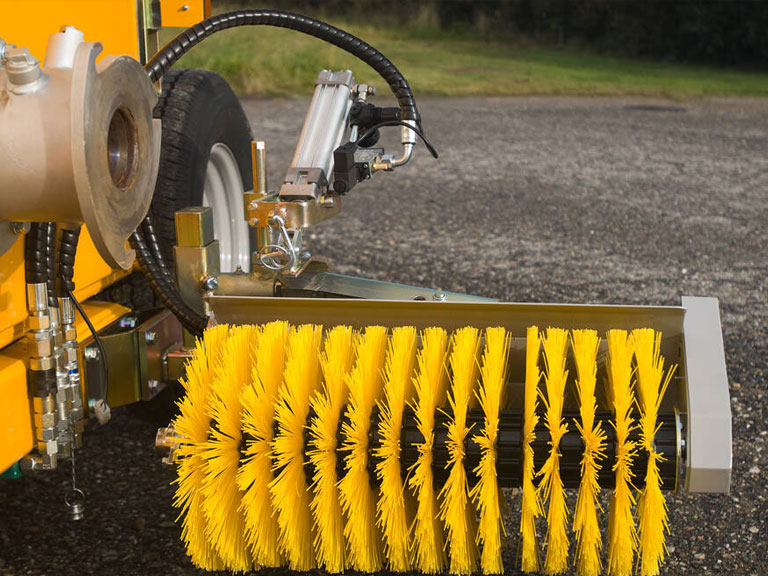

Hydraulic Broom

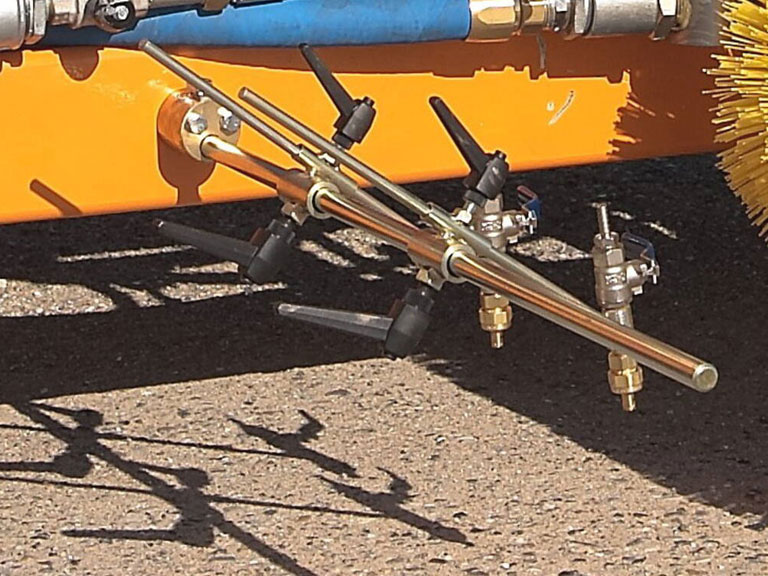

Air Knife

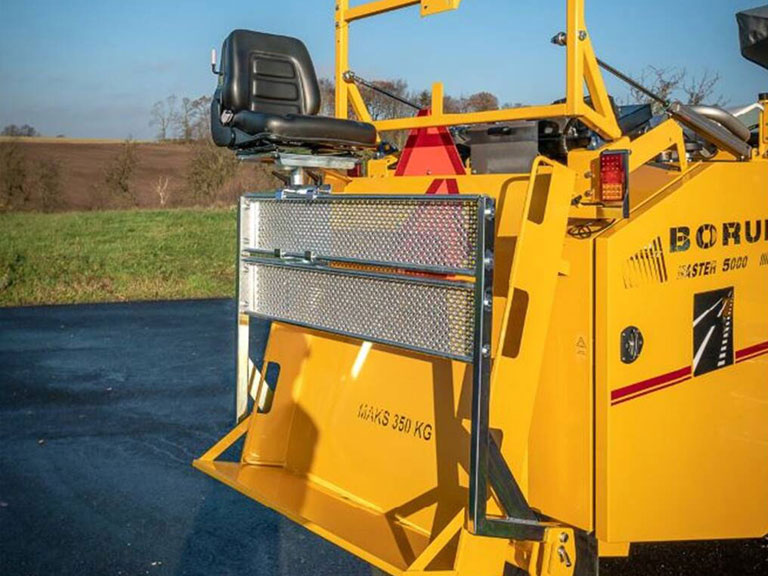

Cone Holder

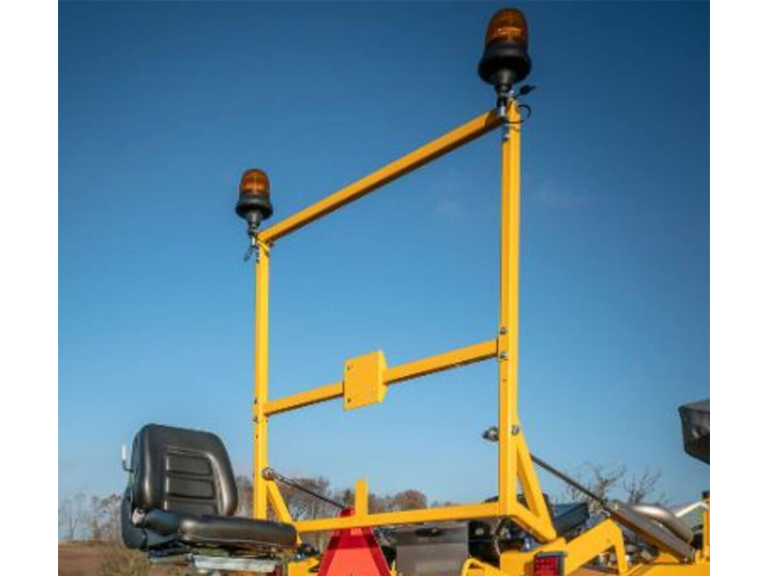

Bar with Pneumatic Lift for Mounting Warning Lights

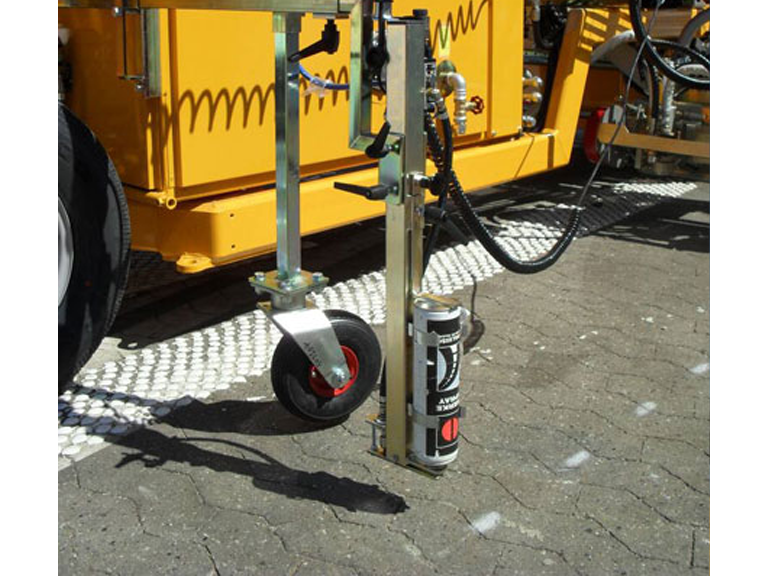

Pre-Marking System with Paint Can

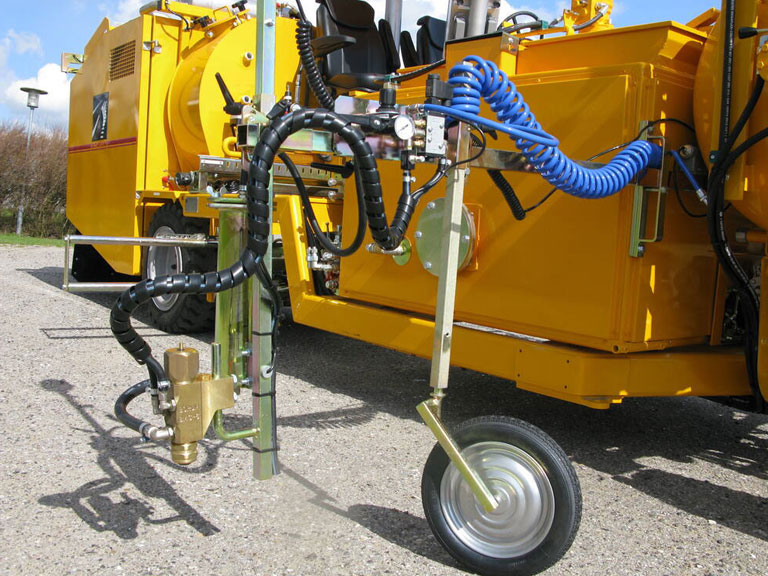

Pre-Marking System with Paint Gun

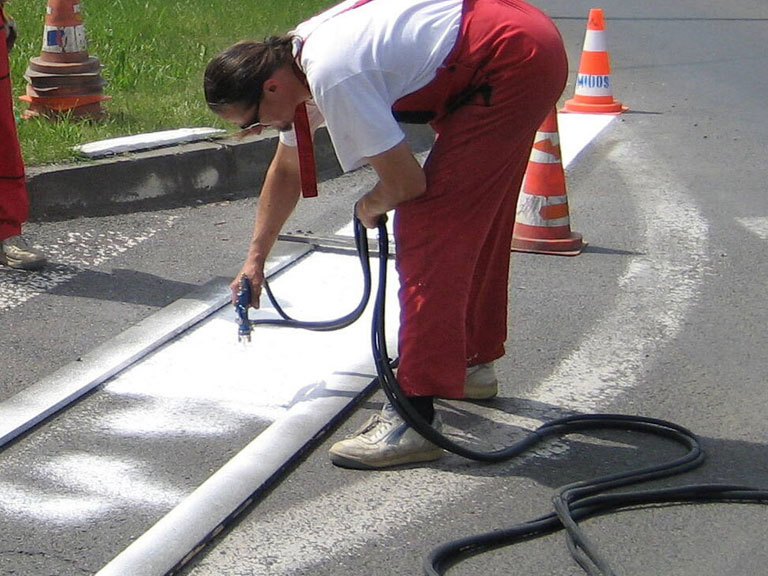

Hand Paint Gun
