Thermoplastic Road Marking Equipment
A range of equipment used for applying thermoplastic to road surfaces.
Manual Machine Applicators

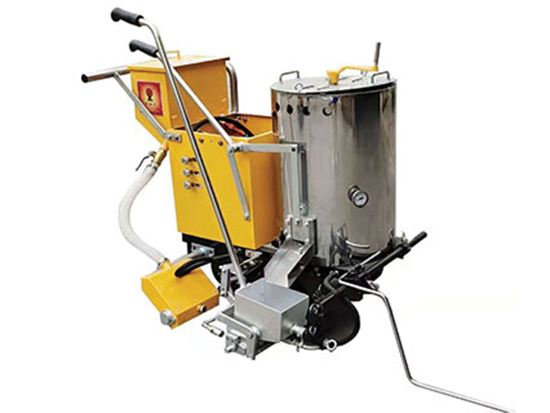

PLASTILINE® Manual Screed Machine LXD 860
Driving Method: Manually propelled walking system - PLASTILINE® LXD Booster Vehicle attachment optional.
Line Applications: Flat screed markings.
Glass Bead Dispenser: Automatic double glass bead dispenser. Capable of dispensing two types of beads at the same time with Speed governing geared dispenser.
Screed Shoe: PLASTILINE® LXD Screed Shoe ( 1 - 3 mm Line Thickness)
• 100/150/200/250/300/350/400/450 mm (Single Line)
Melt Chamber: Single chamber with single mixing paddle.
Heating Method: Liquified Petroleum Gas (LPG).
| Bead Hopper Capacity | 15 kg |
| Material Capacity | 100 kg |
| Dimensions | 120 x 85 x 116 cm |
| Temperature Limit Control | Thermostat |
| Electronic Ignition | No |
| Weight | 130 kg |

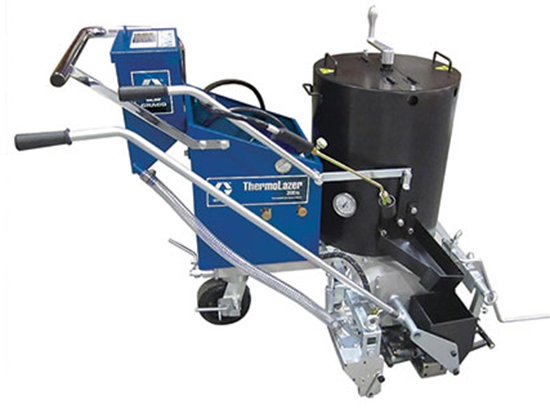

GRACO® THERMOLAZER 200 TC
Driving Method: Manually propelled walking system - Graco LineDriver HD attachment optional.
Line Applications: Flat screed markings.
Glass Bead Dispenser: 30 cm single glass bead dispenser with 2.5 cm increments that allows you to “dial-in” the drop rate.
Screed Shoe: Graco FlexDie (External 4 torch die heat system)
• 50/100/150/200/250/300mm (Single Line)
Melt Chamber: Single chamber with single mixing paddle.
Heating Method: Liquified Petroleum Gas (LPG).
| Bead Hopper Capacity | 18 kg |
| Material Capacity | 90 kg |
| Main Burners | 30,000 BTU |
| Temperature Limit Control | Thermostat |
| Electronic Ignition | No |
| Weight | 118 kg |
GRACO® THERMOLAZER PROMELT
Driving Method: Manually propelled walking system - Graco LineDriver HD attachment optional.
Line Applications: Flat screed markings.
Glass Bead Dispenser: 30 cm single glass bead dispenser with 2.5 cm increments that allows you to “dial-in” the drop rate.
Screed Shoe: Graco SmartDie II (Tri-Flame Die Heater System)
• 50/100/150/200/250/300/400mm (Single Line)
Melt Chamber: QuadMelt with QuadMix System.
Heating Method: Liquified Petroleum Gas (LPG).
| Bead Hopper Capacity | 40 kg |
| Material Capacity | 135 kg |
| Main Burners | 100,000 BTU |
| Temperature Limit Control | 246°C Switch |
| Electronic Ignition | Yes |
| Weight | 157 kg |

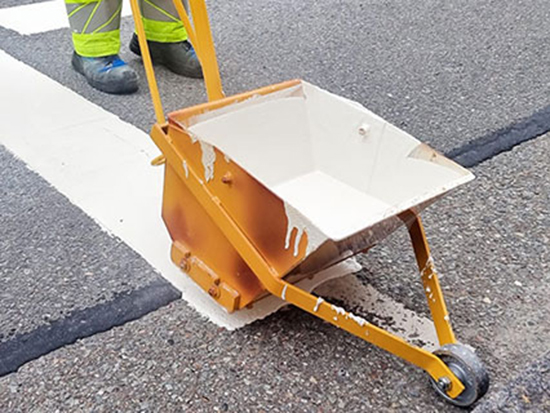

Plastiline® MANUAL SCREED BOX APPLICATORS
Manually operated thermoplastic screed boxes designed for small volume jobs & areas with limited space for operating equipment. The perfect solution for parking lots, stop streets, pedestrian crossings & road marking symbols.
The following sizes are available:
• 100mm | 150mm | 200mm | 250mm | 300mm | 400mm | 500mm
Self Propelled Machine Applicators

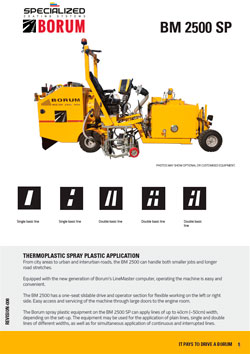

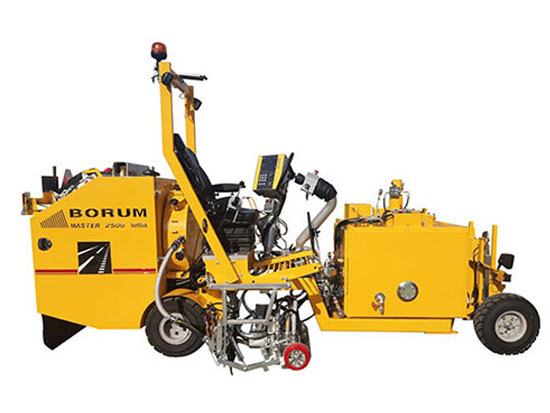

BORUM® MASTER 2500 SP ROAD MARKING MACHINE
From city areas to urban and interurban roads, the BM 2500 can handle both smaller jobs and longer road stretches. Equipped with the new generation of Borum’s LineMaster computer, operating the machine is easy and convenient. The BM 2500 has a one-seat slidable drive and operator section for flexible working on the left or right side. Easy access and servicing of the machine through large doors to the engine room. The Borum spray plastic equipment on the BM 2500 SP can apply lines of up to 40cm (~50cm) width, depending on the set-up. The equipment may be used for the application of plain lines, single and double lines of different widths, as well as for simultaneous application of continuous and interrupted lines.

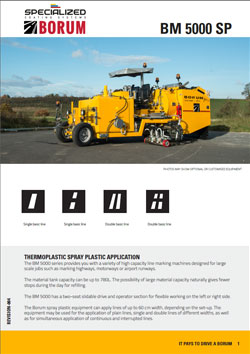

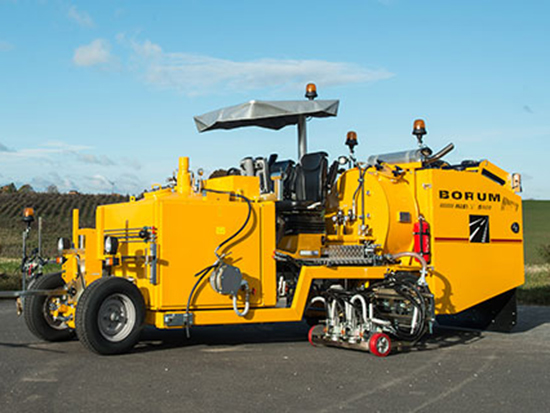

BORUM® MASTER 5000 SP ROAD MARKING MACHINE
The BM 5000 series provides you with a variety of high capacity line marking machines designed for large scale jobs such as marking highways, motorways or airport runways. The material tank capacity can be up to 780L. The possibility of large material capacity naturally gives fewer stops during the day for refilling. The BM 5000 has a two-seat slidable drive and operator section for flexible working on the left or right side. The Borum spray plastic equipment can apply lines of up to 60 cm width, depending on the set-up. The equipment may be used for the application of plain lines, single and double lines of different widths, as well as for simultaneous application of continuous and interrupted lines.

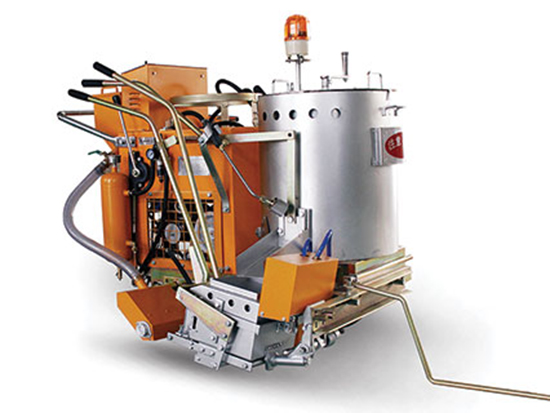

PLASTILINE® RUMBLE & SCREED LXD AUTOMATIC
Driving Method: Self propelled walking system with automatic program controller & manual control panel.
Line Applications: Flat screeds markings, ribs & rib lines, anti-skid markings, rain lines, tactile lines & high or low frequency rumble lines.
Glass Bead Dispenser: Automatic double glass bead dispenser. Capable of dispensing two types of beads at the same time with Speed governing geared dispenser.
Screed Shoe:
PLASTILINE® LXD Screed Shoe (1 - 3mm Line Thickness)
• 100/150/200/250/300/350/400/450mm (Single Line)
PLASTILINE® LXD Rumble & Rib Shoe
• 100/150/200mm (Single Line)
Melt Chamber: Single chamber with single mixing paddle.
Heating Method: Liquified Petroleum Gas (LPG).
Line Guidance System: Mechanical pointer.
| Bead Hopper Capacity | 20 kg |
| Material Capacity | 120 kg |
| Engine | Honda 5,5HP, 163CC |
| Velocity | Greater than 400 m/hour |
| Dimensions | 146 x 96 x110 cm |
| Temperature Limit Control | Thermostat |
| Electronic Ignition | No |
| Fuel | Petroleum |
| Weight | 256 kg |

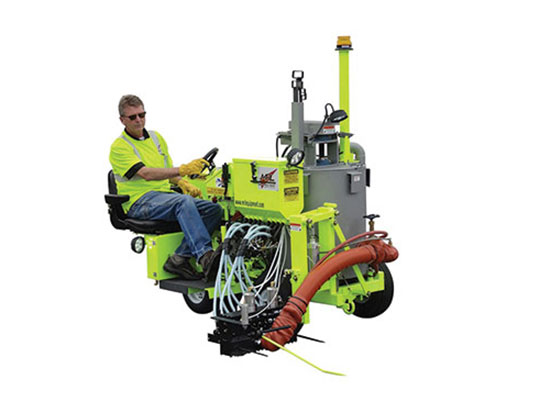

MRL MINI MAC 400
Driving Method: Self propelled driving system with operator control console.
Line Applications: Ribbon extrusion, screed extrusion & rib extrusion.
Glass Bead Dispenser: Single drop glass bead system with 3 air assisted glass bead dispensers.
Ribbon Extrusion Die:
MRL Quad Ribbon Gun
• Standard 33 cm width
• Manual slide bars - 100/150/200/250/300mm
Melt Chamber: Single oil jacketed material tank with oil circulation pump. Electronic material pump Speed control enables automatic increase or decrease of material volume as required.
Heating Method: Liquified Petroleum Gas (LPG).
Line Guidance System: Mechanical pointer & GL1000 Guidance Laser Pointer installed on the unit.
| Bead Hopper Capacity | 45 kg |
| Material Capacity | 180 kg |
| Engine | 2 Cylinder 25 hp Kohler Command Series |
| Velocity | 0 - 12.8 kph |
| Temperature Limit Control | Digital oil temperature control |
| Electronic Ignition | Yes |
| Fuel | Liquefied Petroleum Gas |
| Weight (Equip. Dependent) | 727 - 877 kg |
| Dimensions | 152 - 178 x 229 x 203 cm |
MRL MINI MAC 1000
Driving Method: Self propelled driving system with operator control console.
Line Applications: Ribbon extrusion, screed extrusion, rib extrusion & spray.
Glass Bead Dispenser: Single drop glass bead system with four pressurized glass bead tanks.
Ribbon Extrusion Die/Spray System:
MRL Material Ribbon Extrusion Die System
• Centerline/Left Side: Two 100-150mm adjustable width ribbon extrusion die with slide bars.
• Edgeline/Right Side: One 100/150/200/300mm adjustable width ribbon extrusion die with slide bars.
Air Atomized Spray Thermoplastic Package
• 2 MRL thermoplastic spray guns - left side.
• 1 MRL thermoplastic spray gun - right side.
Melt Chamber: Single oil jacketed material tank with oil circulation pump. Electronic material pump Speed control enables automatic increase or decrease of material volume as required.
Heating Method: Diesel fired oil heating system.
Line Guidance System: GL1000 Guidance Laser Pointer installed on the unit.
| Bead Hopper Capacity | 220 kg (Total capacity) |
| Material Capacity | 450 kg |
| Engine | 4 cyclinder 74hp tier 4 final turbo diesel engine, Cummins model QSF 2.8 L |
| Velocity | 0 - 16 kph |
| Temperature Limit Control | Yes |
| Electronic Ignition | Yes |
| Fuel | Diesel |
| Weight (Equip. Dependent) | 2727 kg |
| Dimensions | 248 cm x 3.5 m x 203 cm |

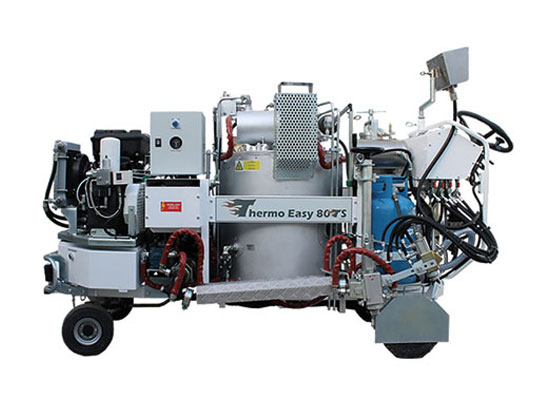

THERMO EASY 80TS
Driving Method: Self propelled driving system with operator control console & cart seat for the operator.
Line Applications: Ribbon extrusion, rib extrusion & spray.
Glass Bead Dispenser: Single pressurized glass bead tank with 2 x MF-G10 glass bead guns, one on each side of the machine.
Thermoplastic Spray System:
• 1 FONTRAF MF-P8 thermoplastic spray gun - right side.
• 1 FONTRAF MF-P8 thermoplastic spray gun - left side.
Extrusion Machine/ Rib Line System:
• Right Side: 100/150/200/300 mm adjustable system.
Melt Chamber: Single high quality refractory steel tank with ceramic blanket insulation. Mixer powered by an hydraulic engine with variable Speed and direction control.
Heating Method: Gas burner, indirect thermal oil heating system.
Line Guidance System: Mechanical pointer.
| Bead Hopper Capacity | 25 kg (Total capacity) |
| Material Capacity | 100 kg |
| Engine | Vanguard air cooled 18hp petrol engine |
| Velocity | 0 - 8 kph |
| Temperature Limit Control | Thermostat |
| Electronic Ignition | Yes |
| Fuel | Petrol |
| Weight (Equip. Dependent) | 925 kg |
| Dimensions | 1086 mm x 2500 mm x 1355 mm |
Preheaters & Trailers

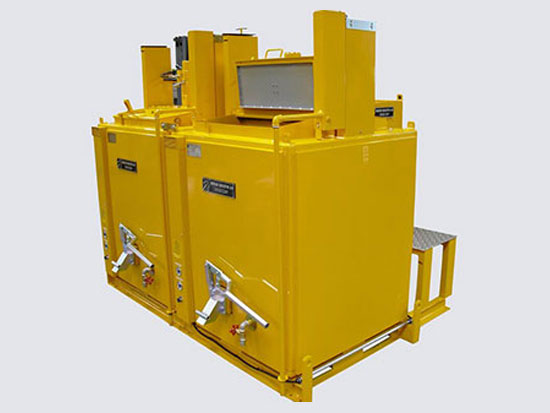

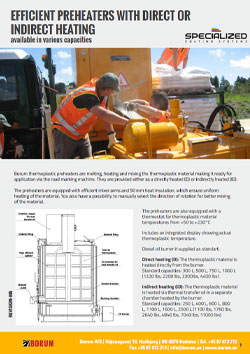

BORUM® MASTER THERMOPLASTIC HEATER
Borum thermoplastic preheaters are designed for heating, melting and mixing thermoplastic material, getting it ready for transfer into thermoplastic road marking machine applicators. They are provided either as a directly heated (D) or indirectly heated (ID). The preheaters are equipped with efficient mixer arms and 50 mm heat insulation, which ensure uniform heating of the material. You also have a possibility to manually select the direction of rotation for better mixing of the material.

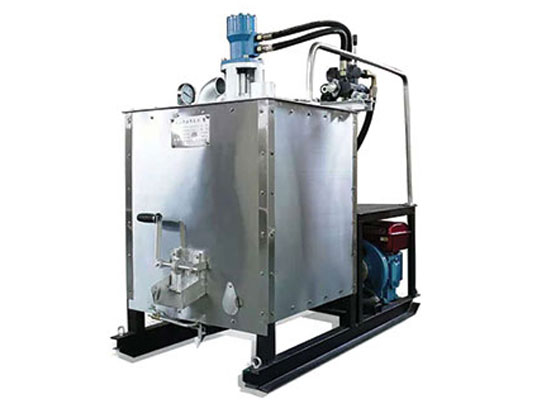

PLASTILINE® LXD 400 D PREHEATER DIESEL
Engine: Single cylinder 7.7 PS water cooled diesel engine.
Driving System: Diesel engine to drive gear pump, multi path hydraulic control valve, overflow valve and hydraulic motor.
Capacity of Hydraulic Oil Tank: 40 Litres
Preheater Body: Made of stainless steel, the bottom is made of boiler iron.
Insulation: Double layer heat insulating material is fixed between inner container and shell.
Heating System: Direct injection burner (LPG).
Safety Device: Specially designed automatic overload protection device can protect hydraulic parts from damage when overloaded.
| Thermo Tank Capacity | 300 kg |
| Size | 173 x 83 x 149 cm |
| Electronic Ignition | No |
| Weight | 492 kg |
PLASTILINE® LXD 400 P PREHEATER PETROL
Engine: Single cylinder Yamaha / Honda powered petrol engine.
Driving System: Petrol engine to drive gear pump, multi path hydraulic control valve, overflow valve and hydraulic motor.
Capacity of Hydraulic Oil Tank: 40 Litres
Preheater Body: Made of stainless steel, the bottom is made of boiler iron.
Insulation: Double layer heat insulating material is fixed between inner container and shell.
Heating System: Direct injection burner (LPG).
Safety Device: Specially designed automatic overload protection device can protect hydraulic parts from damage when overloaded.
| Thermo Tank Capacity | 300 kg |
| Size | 173 x 83 x 149 cm |
| Electronic Ignition | No |
| Weight | 492 kg |

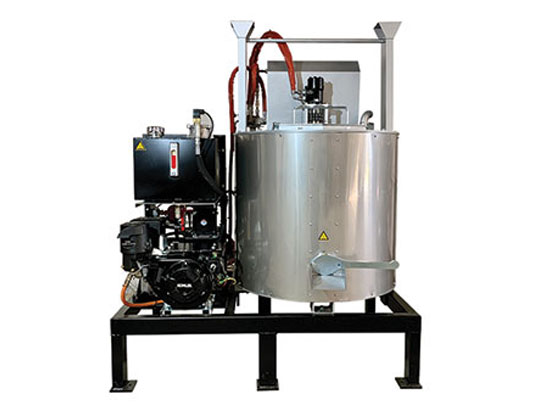

THERMOPLASTIC STATIONARY BOILER F220P
Engine: 9 HP Kohler petrol engine with electric start.
Driving System: Hydraulic and automatic mixing system with vertical agitator.
Capacity of Hydraulic Oil Tank: 25 Litres
Preheater Body: Made of stainless steel.
Insulation: Double wall boiler with insulation.
Heating System: Direct flame under bottom of boiler.
Safety Device: Automatic temperature regulator with digital control thermometer, range 150°C to 270°C. Safety device to avoid material overheating.
| Thermo Tank Capacity | 440 kg |
| Size | 92 x 140 x 170 cm |
| Electronic Ignition | Yes |
| Weight | 440 kg |

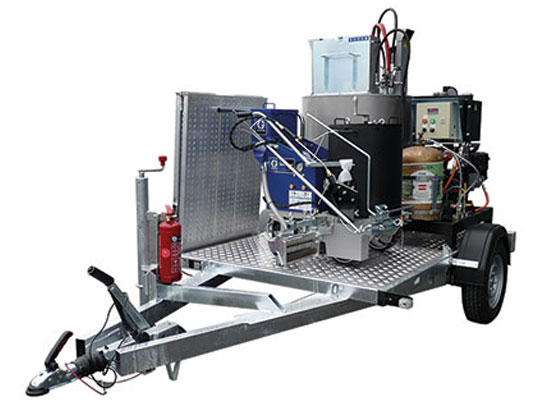

THERMOPLASTIC TRAILER F220R
Trailer
Single axle flatbed chassis with non slip metal floor.
Fixed and foldable aluminum ramp for loading and transporting thermoplastic applicator machines.
Heavy duty jockey wheel, fire extinguisher & spare wheel.
Automatic recoil inertia braking.
Preheater:
Thermoplastic Stationary Boiler F220P.
Please note: The Thermoplastic Trailer F220R does not come with a thermoplastic manual machine applicator & propane gas bottle. Image is for demonstration purposes only.
| Dimensions | 360 x 185 x 220 cm |
| Tare Weight | 680 kg |

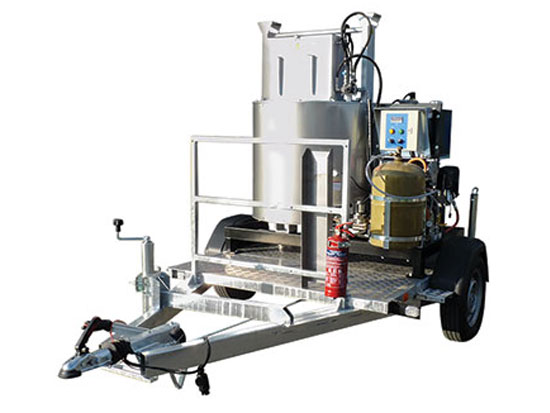

THERMOPLASTIC TRAILER F220RC
Trailer
Single axle flatbed chassis with non slip metal floor.
Heavy duty jockey wheel, fire extinguisher & spare wheel.
Automatic recoil inertia braking.
Preheater:
Thermoplastic Stationary Boiler F220P.
Please note: The Thermoplastic Trailer F220RC does not come with a propane gas bottle. Image is for demonstration purposes only.
| Dimensions | 293 x 185 x 220 cm |
| Tare Weight | 630 kg |

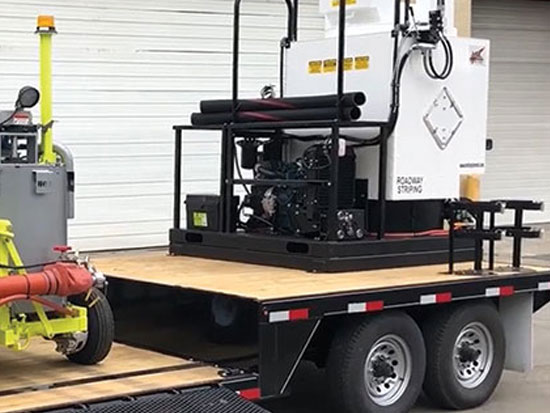

MRL 9-4000 MINI-MAC 400 THERMOPLASTIC SUPPLY HAUL TRAILER
2020 18’ Bumper Pull Titan Trailer with drop deck.
8,000# Torsion EZ Lube axles. 16,000 lb total GVW.
Electric brakes on all 4 wheels.
Coated interframe under floor.
96”W x 96”L drop deck and 96”W x 120”L upper deck.
Pressure treated 2”x 8” floor boards.
Two (2) 84” x 72” wide spring-loaded ramps with 2” inch tubing and raised expanded metal.
Two (2) LED flood lights to illuminate MM400 loading area, deck area and rear trailer area.
MRL fabricated steel riser to raise pre-melter off rear deck. Includes two (2) popping pans.
Please note: The MRL 9-4000 Mini-Mac 400 Thermoplastic Supply Haul Trailer does not include the thermoplastic machine applicator & pre-heater. Image is for demonstration purposes only.
Accessories & Ride On Systems
PLASTILINE® GLASS BEAD DISPENSER
Features:
Robust lightweight design.
Provides even glass bead distribution.
Minimizes glass bead wastage.
Technical Details:
150mm wide dispersion.
5 kg glass bead capacity.

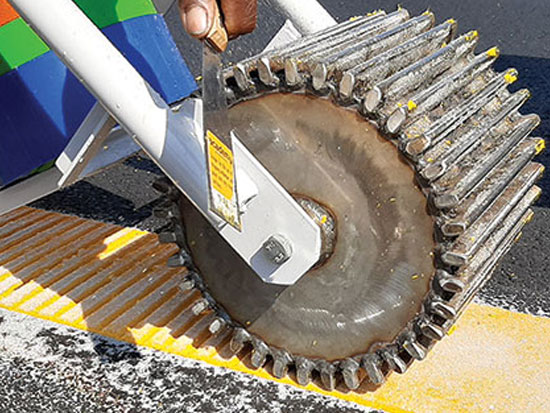

PLASTILINE® RIB ROLLER
Features:
Specialized hand push rib roller used to form the Rain Line profile after thermoplastic screed application.
Steel roller drum & teeth.
Low pressure water sprayer attachment for preventing thermoplastic from sticking to teeth.
Steel frame body with heat resistant hard plastic castor wheels.

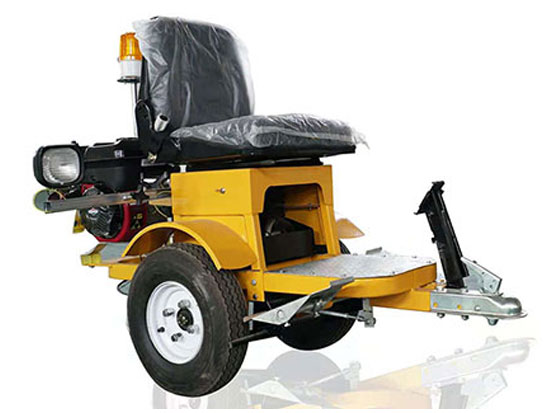

PLASTILINE® LXD BOOSTER VEHICLE
| Speed | 16 km/h forward and 10 km/h reverse |
| Colour | Yellow or Blue depending on availability |
| Engine | Honda GX Engine |
| Compatibilty | PLASTILINE® Manual Screed Machine LXD 860 PLASTILINE® Rumble & Screed LXD Automatic |
| Weight | 80 kg |

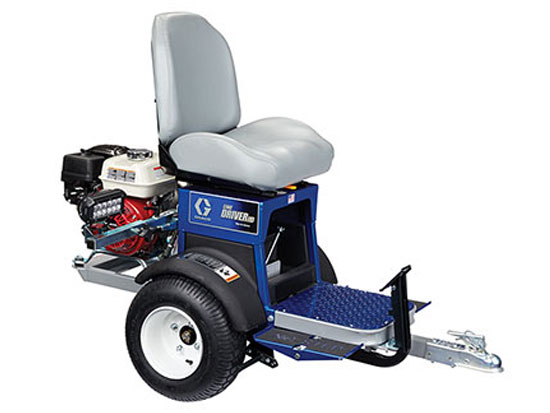

Graco® LINEDRIVER HD 200
| Speed | 16 km/h forward and 10 km/h reverse |
| Colour | Blue |
| Engine | Honda GX Engine |
| Compatibilty | ThermoLazer 200 TC ThermoLazer 300 TC ThermoLazer ProMelt |
| Weight | 125 kg |
