3 Ply Tape
BUTYLEN 3 Ply Tape Systems for the corrosion & mechanical protection of pipelines.

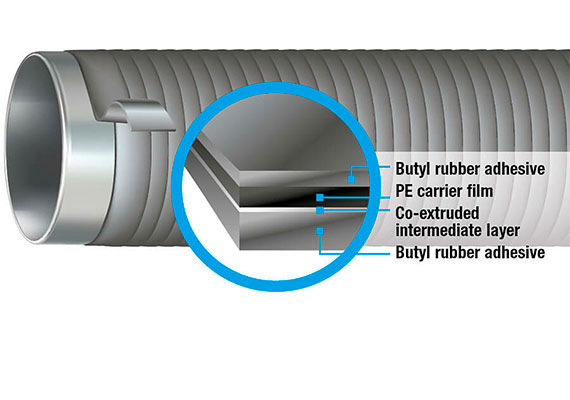

BUTYLEN-032-65 AS
BUTYLEN-032-65 AS is a cold applied corrosion protection tape for metal pipes & pipelines with both small & large nominal pipe sizes. It is a real co-extruded three-ply plastic tape made from a stabilised polyethylene carrier material with butyl rubber adhesive on both sides. The inner butyl rubber coating fuses with the outer layer to form a hose-like encasement that is virtually impermeable to water vapour, soil bacteria and oxygen. BUTYLEN-032-65 AS is compatible with factory coatings made from PE, PP, FBE, PU, CTE and bitumen, making this product a versatile solution for applications from field joint coating on pipelines to pipe coating and rehabilitation in power station and pipeline station construction.

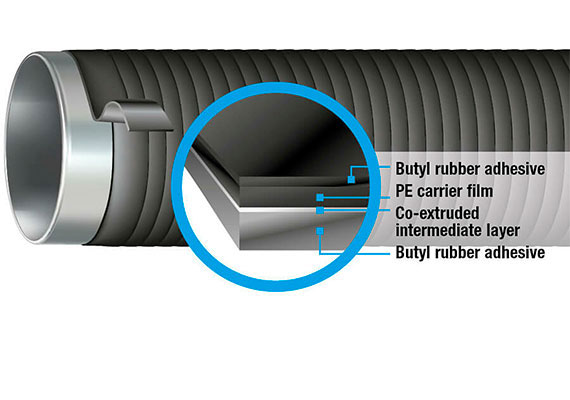

BUTYLEN-AS30
BUTYLEN-AS30 is a cold applied corrosion protection tape for metal pipes & pipelines with both small & large nominal pipe sizes. It is a real co-extruded three-ply plastic tape made from a stabilised polyethylene carrier material with butyl rubber adhesive on both sides. The inner butyl rubber coating fuses with the outer layer to form a hose-like encasement that is virtually impermeable to water vapour, soil bacteria and oxygen. BUTYLEN-AS30 boasts an excellent price/quality ratio and is compatible with factory coatings made from PE, PP, FBE, PU, CTE and bitumen, making this product a versatile solution for applications ranging from field joint coating on pipelines to the encasement of uneven surfaces of large and small diameters, without impacting on the economic benefits of the product.
BUTYLEN-AS39 P
BUTYLEN-AS39 P is a cold applied corrosion protection tape for metal pipes & pipelines in high mechanical & corrosive stress classes. Thanks to the innovative formula, the tapes fuse together in the overlapping area and create a long-lasting hose-type coating. BUTYLEN-AS39 is used for field joint coating and pipe coating and rehabilitation on pipelines and has proven itself outstandingly in these applications across the world. Whether applied to a kerosene pipeline in Chile or a gas pipeline in Jordan, BUTYLEN-AS39 P provides guaranteed high-quality corrosion protection.
BUTYLEN-AS40 HT
BUTYLEN-AS40 HT is a high temperature resistant tape system for the corrosion prevention coating of metal pipes & pipelines. This product is setting the new global standard as a high temperature resistance single tape system, and in combination with the innovative BUTYLEN HT100 Primer, it achieves outstanding corrosion protection from mechanical loads at operating temperatures of up to +100°C (+212°F) using just one wrapping process. This product is used for field joint coatings & pipe coating for oil & gas pipelines. Particularly for transport pipelines with very high operating temperatures (+100°C) in power stations, refineries, and station construction.
BUTYLEN-AS40 PLUS
BUTYLEN-AS40 Plus is a single tape system for the corrosion prevention coating of metal pipes & pipelines in high mechanical & corrosive stress classes. With its outstanding properties, BUTYLEN-AS40 Plus has been the leading corrosion prevention solution among cold-applied corrosion protection tapes since 1972. Thanks to the innovative formula, the tapes fuse together in the overlapping area and create a long-lasting hose-type coating. This product has been successfully used for field joint coating, pipe coating & pipe rehabilitation – ideal for small nominal pipe sizes and for use on larger transport pipes.
BUTYLEN-AS50
BUTYLEN-AS50 is a single tape system for the corrosion prevention coating of metal pipes & pipelines. This high quality single tape system has outstanding corrosion protection properties. Even after just one layer with an overlap of 50%, the tape exceeds the requirements for stress class B50 in accordance with EN 12068, which makes this product an extremely cost-effective solution for the user. This product is ideal for field joint coating, pipe coating & rehabilitation and can be used in power stations & pipeline station construction. BUTYLEN-AS50 is also used as a mechanical protection tape as part of the Vivax Coat system.
BUTYLEN-E10
BUTYLEN-E10 is a cold applied, self-amalgamating, 1mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-E12
BUTYLEN-E12 is a cold applied, self-amalgamating, 1.2mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-E15
BUTYLEN-E15 is a cold applied, self-amalgamating, 1.5mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-ET100
BUTYLEN-ET100 is a cold applied, three-ply butyl rubber tape with a heat resistant butyl rubber coating on both sides & stabilised polyethylene carrier film. This product is used as a corrosion prevention tape on pipelines, particularly hot transport lines (Oil & district heating). When used in conjunction with BUTYLEN-R20 HT it can be used for field joint coating, pipe coating and pipe rehabilitation in power stations & in pipeline station construction. For more than 15 years, from Europe to Africa and Africa to Asia, the BUTYLEN-ET100/-R20 HT system has been a reliable solution for high-temperature systems across hundreds of kilometres of pipeline.
BUTYLEN-N8
BUTYLEN-N8 is a cold applied, self-amalgamating, 0.8mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-N10
BUTYLEN-N10 is a cold applied, self-amalgamating, 1mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-N12
BUTYLEN-N12 is a cold applied, self-amalgamating, 1.2mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-N15
BUTYLEN-N12 is a cold applied, self-amalgamating, 1.2mm thick butyl rubber based plastic tape used for the permanent corrosion prevention & electrical insulation on pipes & metal parts. This product has a wide range of applications such as pipeline installation & construction, metal & vehicle engineering, electrical installations and building services technology.
BUTYLEN-N60
BUTYLEN-N60 is a co-extruded three layer plastic tape made from a stabilized polyethylene carrier material with a butyl rubber coating on both sides. BUTYLEN-N60 is ideal for use in conjunction with BUTYLEN-S20 on pipelines (oil, gas, water) for field joint coating, pipe coating & pipeline rehabilitation. Thanks to its thick inner butyl rubber layer, BUTYLEN-N60 adapts perfectly to large beads and edges and features a special formula for rapid and optimum self-amalgamation. Even in extreme corrosion conditions, BUTYLEN-N60 has been fulfilling the requirements and expectations of our customers across thousands of kilometres of pipeline for more than 30 years.
BUTYLEN-S10
BUTYLEN-S10 is a cold applied, single tape system for the corrosion prevention of metal pipes & pipelines. This product is particularly suitable for fittings, flange connections, uneven substrates & complicated geometries in pipeline, pipeline power station construction.
BUTYLEN-S20
BUTYLEN-S20 is a co-extruded three-ply plastic tape made from a stabilized polyethylene carrier with double sided butyl rubber coating. BUTYLEN-S20 is a cold-applied corrosion prevention tape for metal pipes and pipelines with small to very large nominal pipe diameters. This product is ideal as an outer tape in BUTYLEN corrosion prevention tape systems for field joint coating, power stations and in power station construction.
